Tractors > John Deere > 4720

John Deere 4720 Engine



John Deere 4720 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Engine Detail
John Deere 4024T
turbocharged diesel
4-cylinder
liquid-cooled vertical
Displacement148.9 ci
2.4 L
Bore/Stroke3.386x4.134 inches
86 x 105 mm
Rated Power (gross)66 hp
49.2 kW
Air cleanerpaper and felt elements
Compression20.5:1
Rated RPM2400
Torque141 lb-ft
191.2 Nm
Torque RPM1550
Starter volts12
Starter power2.9 hp
2.2 kW
Coolant capacity6.4 qts
6.1 L
 8.8 qts (with cab)
8.3 L
Engine Oil

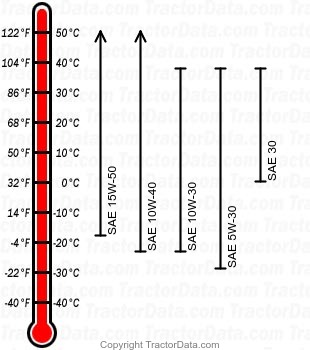

4720 diesel engine oil chart
Oil capacity7.9 qts
7.5 L
