Tractors > John Deere > 4720

John Deere 4720 Attachments



John Deere 4720 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Attachment overview
72" mid-mount mower deck
John Deere 400X loader
John Deere 400CX loader
Backhoe
72" Mower deck
Typemid-mount John Deere
 3-blade with hydraulic lift
Cutting width72 inches
182 cm
Weight448 lbs
203 kg
Overall width85 inches
215 cm
Cut height1 to 9.6 inch
2 to 24 cm

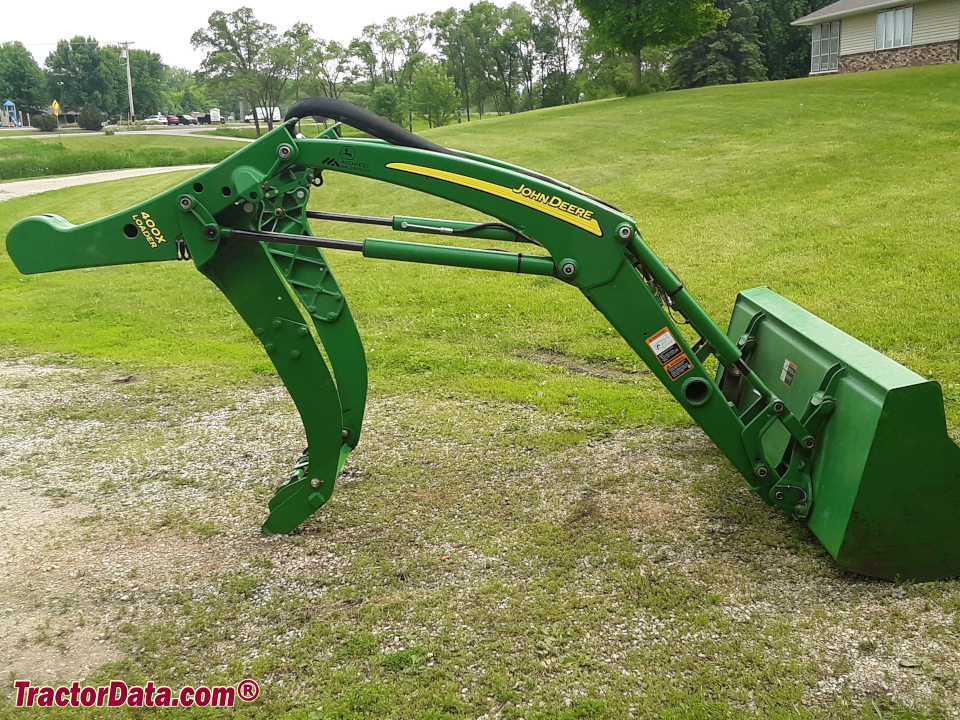

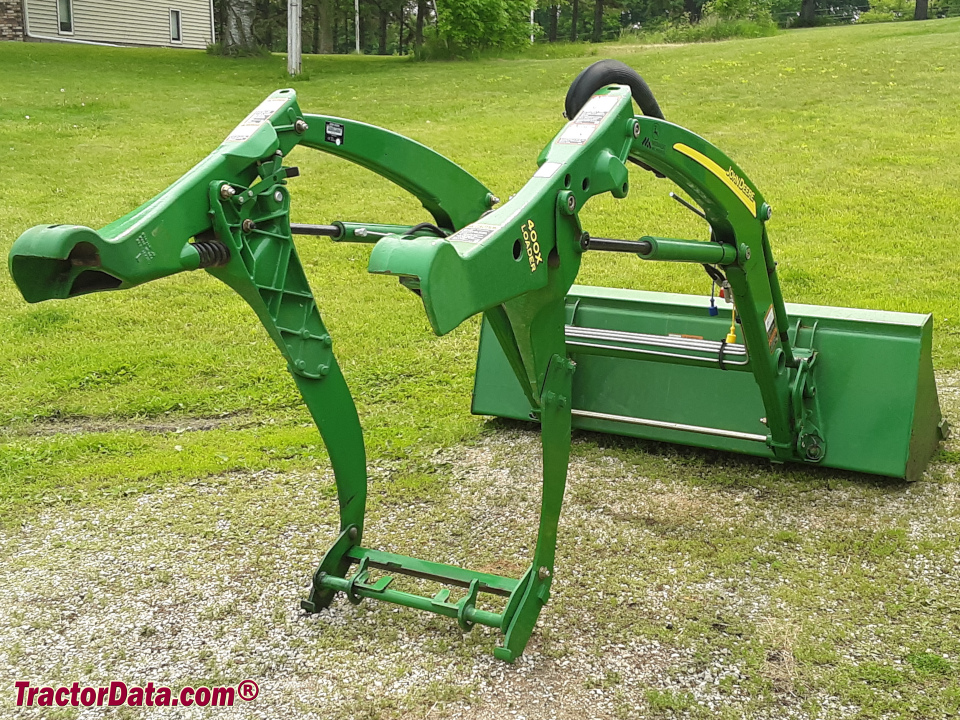

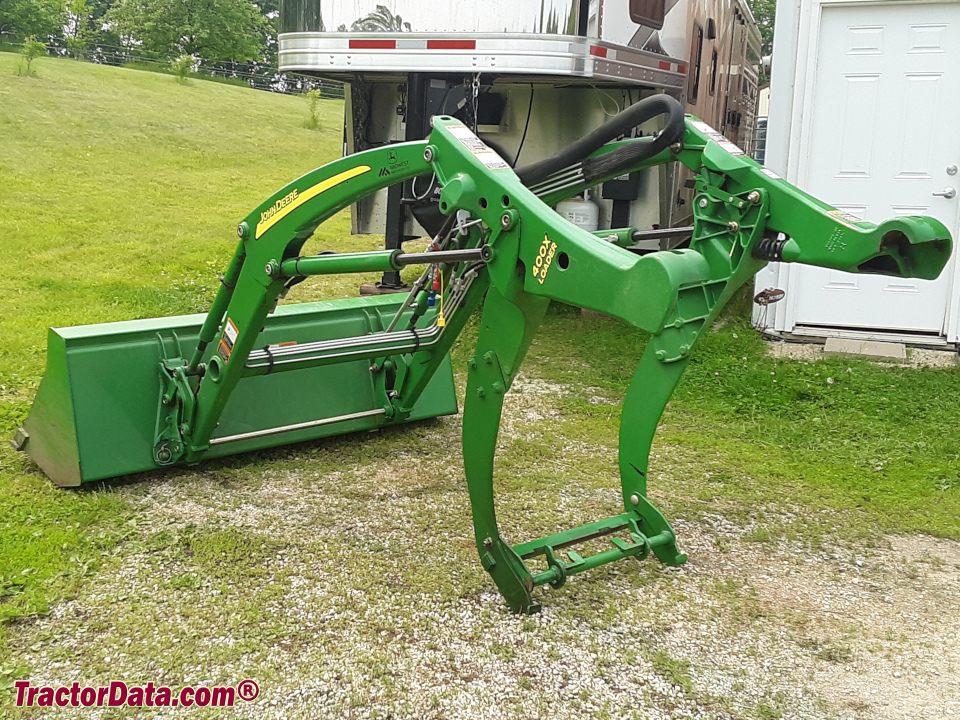

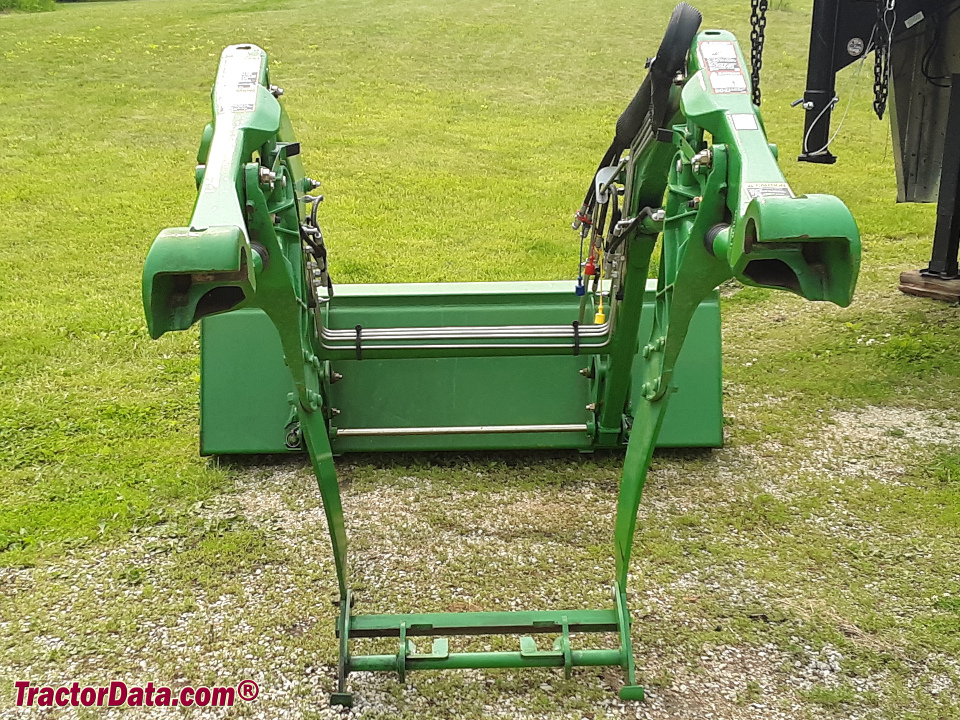

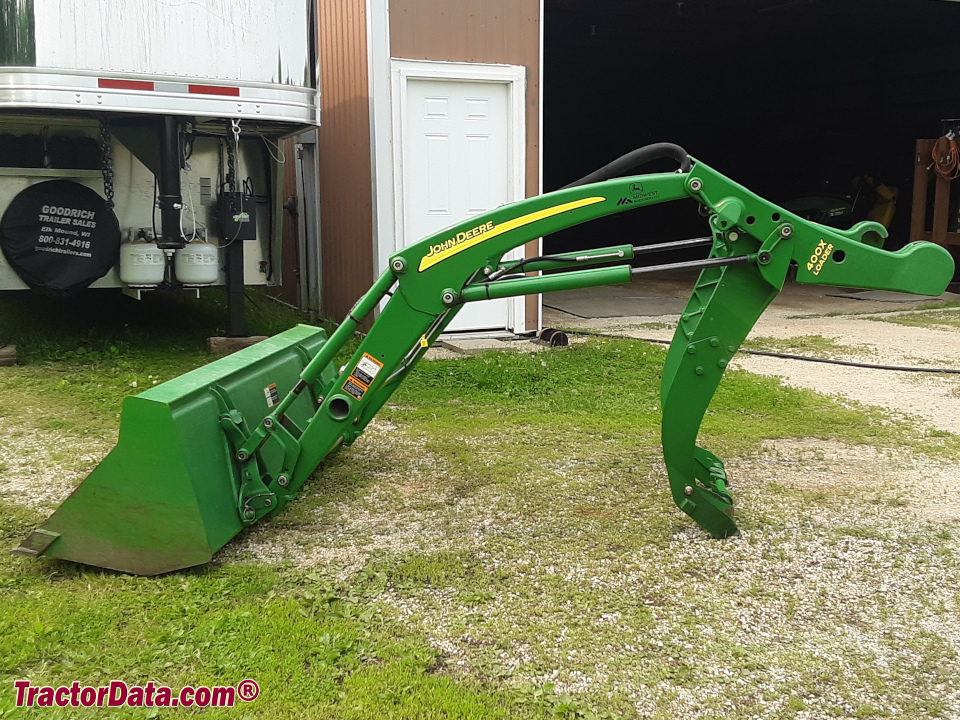

400X Loader
2346 lbs lift (full at pin)
1064 kg
1720 lbs lift (full at 500mm)
780 kg
2701 lbs lift (1.5m at pin)
1225 kg
2154 lbs lift (1.5m at 500mm)
977 kg
3453 lbs breakout (at pin)
1566 kg
2606 lbs breakout (at 500mm)
1182 kg
3289 lbs breakout (bucket)
1491 kg
46° dump
24.4 inches reach (dumped)
61 cm
64.3 inches reach (ground)
163 cm
32° rollback (ground line)
117° rollback (rasied)
112.8 inches height (at pin)
286 cm
89.5 inches clearance (dumped)
227 cm
104.8 inches clearance (level)
266 cm
weight: 927 lbs
420 kg
Bucket width: 61 inches
154 cm
Bucket width: 73 inches
185 cm
400CX Loader
2368 lbs lift (full at pin)
1074 kg
1742 lbs lift (full at 500mm)
790 kg
2734 lbs lift (1.5m at pin)
1240 kg
2181 lbs lift (1.5m at 500mm)
989 kg
3435 lbs breakout (at pin)
1558 kg
3055 lbs breakout (at 500mm)
1385 kg
4638 lbs breakout (bucket)
2103 kg
45° dump
24.8 inches reach (dumped)
62 cm
64.7 inches reach (ground)
164 cm
43° rollback (ground line)
43° rollback (rasied)
112.8 inches height (at pin)
286 cm
89.7 inches clearance (dumped)
227 cm
104.8 inches clearance (level)
266 cm
weight: 1100 lbs
498 kg
Bucket width: 61 inches
154 cm
Bucket width: 73 inches
185 cm
John Deere 485 Backhoe
Backhoe typeJohn Deere 485 Backhoe
Weight1460 lbs
662 kg
Transport height90 inches
228 cm
Digging depth105 inches
266 cm
Reach from pivot142 inches
360 cm
Loading height88 inches
223 cm
Bucket Rotation180°
Swing Arc180°
Bucket force3730 lbs
1691 kg
Dipperstick force2435 lbs
1104 kg
