John Deere 4520 Transmission


John Deere 4520 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Transmission options
12-speed
hydrostatic
Transmission
TransmissionPowrReverser
Gears12 forward and reverse
Oil capacity41.2 qts
39.0 L
Oil type
0oF [-17oC] : Deere HY-GARD
100oF [37oC] : Low-visc HY-GARD
JDM J20C
J20D
PowrReverser uses three ranges, four gears, and a reverser to provide 12 speeds in each direction. The tractor must be stopped, and clutch depressed, to change ranges. The gear can be changed while the tractor is in motion using the clutch. The clutch is not needed to change directions with the reverser lever.
Speeds
With 13.6-28 rear tires.
4520 PowrReverser  speeds
Transmission
TransmissioneHydro
Typehydrostatic
Gearsinfinite 3-range forward and reverse
Oil capacity38.4 qts
36.3 L
Oil type
0oF [-17oC] : Deere HY-GARD
100oF [37oC] : Low-visc HY-GARD
JDM J20C
J20D
The eHydro uses a three-position range lever and two foot pedals, one for forward and one for reverse. The foot pedals must be released, and tractor stopped, to change range. The eThrottle feature allows the tractor to automatically manage engine speed.

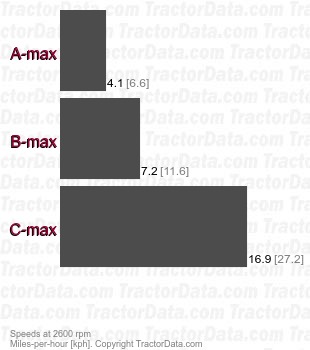

Speeds
With 16.3-28 rear tires.
4520 eHydro hydrostatic speeds
