John Deere 4520 Engine



John Deere 4520 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
60.0hp
66.0hp
Engine Detail
John Deere 4042T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement148.9 ci
2.4 L
Bore/Stroke3.386x4.134 inches
86 x 105 mm
Rated Power (gross)60 hp
44.7 kW
Air cleanerpaper and felt elements
Compression20:1
Rated RPM2400
Torque135 lb-ft
183.1 Nm
Torque RPM1500
Starter volts12
Starter power2.9 hp
2.2 kW
ROPS Coolant capacity6.4 qts
6.1 L
Cab Coolant capacity8.8 qts
8.3 L
Engine Oil

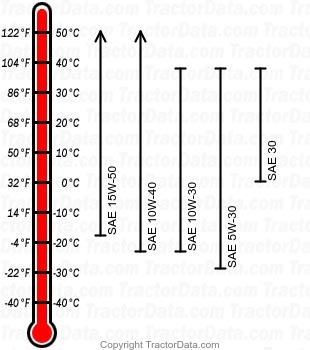

4520 diesel engine oil chart
Oil capacity7.9 qts
7.5 L
