New Holland TC35A Transmission



New Holland TC35A tractor photo
2003 - 2005
Boomer TC-A Series
Compact Utility tractor
Series map:
TC33DA
TC35A
TC40A
33.0hp
35.0hp
40.0hp
Transmission options
12-speed synchronized shuttle
hydrostatic
Transmission
TransmissionSynchronized Shuttle Shift
Typesynchronized shuttle
Gears12 forward and reverse
Transmission
TransmissionDualPower
Typehydrostatic
Gearsinfinite forward and reverse (4-range)
Oil capacity38 qts
36.0 L
Two-speed push-button power shift (low/high pump displacement) on a two-range hydrostatic transmission (I/II), available on the TC35DA.
Speeds
With 13.6x24 rear tires.

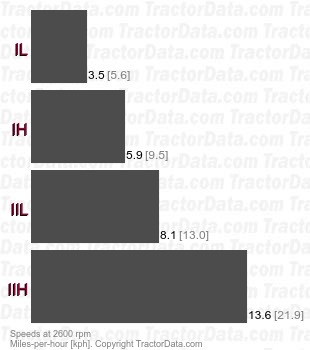

TC35A DualPower hydrostatic speeds
