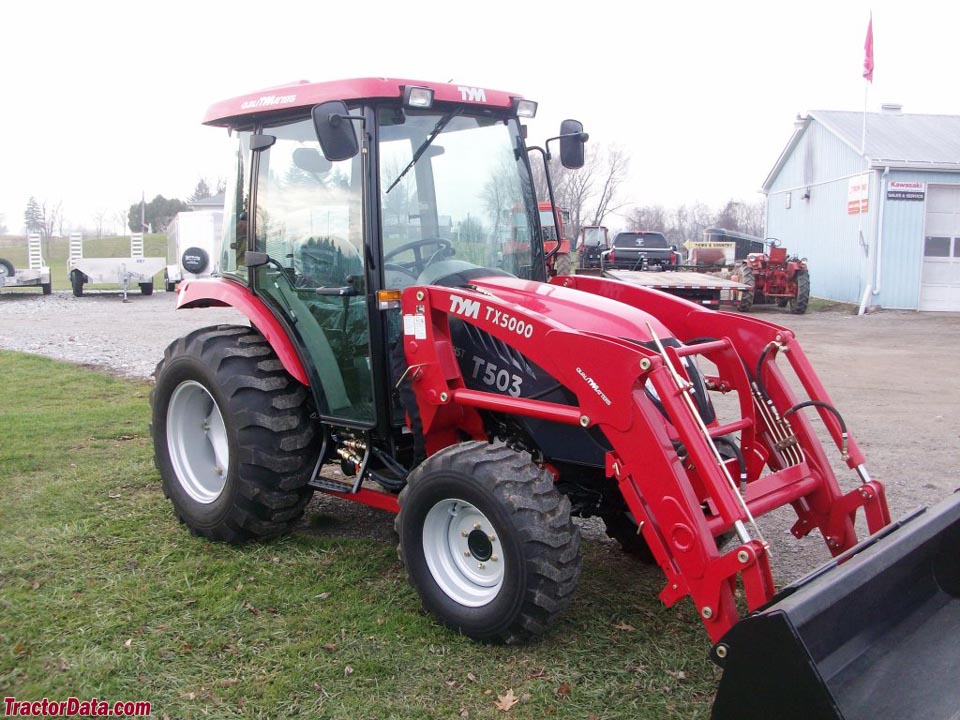

TYM T503
| | 2006 - 2015 |
| 500 Series | | Compact Utility tractor |
|
Series map:
T433
T503
T553
42.7hp
50.7hp
55.0hp
| Production |
| Manufacturer | TYM
|
| Compact Utility tractor |
| TYM T503 Power |
| Engine (gross) | 50.7 hp
37.8 kW
|
| PTO (claimed) | 39.8 hp
29.7 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Wet disc brakes |
| Two-post ROPS. Cab optional. |
| Capacity |
| Fuel | 17 gal
64.3 L
|
| Hydraulic system | 9.2 gal
34.8 L
|
| Front axle | 10.5 qts
9.9 L
|
| Hydraulics |
| Type | dual gear pump
|
| Capacity | 9.2 gal
34.8 L
|
| Valves | 2
|
| Pump flow | 9.5 gpm
36.0 lpm
|
| Total flow | 14.5 gpm
54.9 lpm
|
| Steering flow | 5.0 gpm
18.9 lpm
|
| Tractor hitch |
| Rear Type | 1
|
| Control | position and draft control
|
| Rear lift (at ends) | 2875 lbs
1304 kg
|
| Rear lift (at 24"/610mm) | 2105 lbs
954 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540
|
| T503 Serial Numbers |
| Location: | Serial number plate on the front right of the tractor frame, above the front axle.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 65
|
| Charging volts | 12
|
| Battery volts | 12
|
