John Deere 7920 Engine


John Deere 7920 tractor photo
2003 - 2006
7020 Series
Row-Crop tractor
Series map:
7820
7920
141.0kw
153.0kw
Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement496 ci
8.1 L
Bore/Stroke4.56x5.06 inches
116 x 129 mm
Rated Power (net)197.1 hp
147.0 kW
Rated Power (gross)205.2 hp
153.0 kW
Maximum Power (net)211.9 hp
158.0 kW
Maximum Power (gross)219.9 hp*With 50KPH transmission a transport boost up to 243HP was available.
164.0 kW
Fuel systemhigh-pressure common rail
Air cleanerdual paper elements
Compression16.5:1
Rated RPM2100
Idle RPM875-2200
Torque714.7 lb-ft
969.1 Nm
Torque RPM1400
Starter volts12
Oil capacity25.4 qts
24.0 L
Coolant capacity35.1 qts
33.2 L

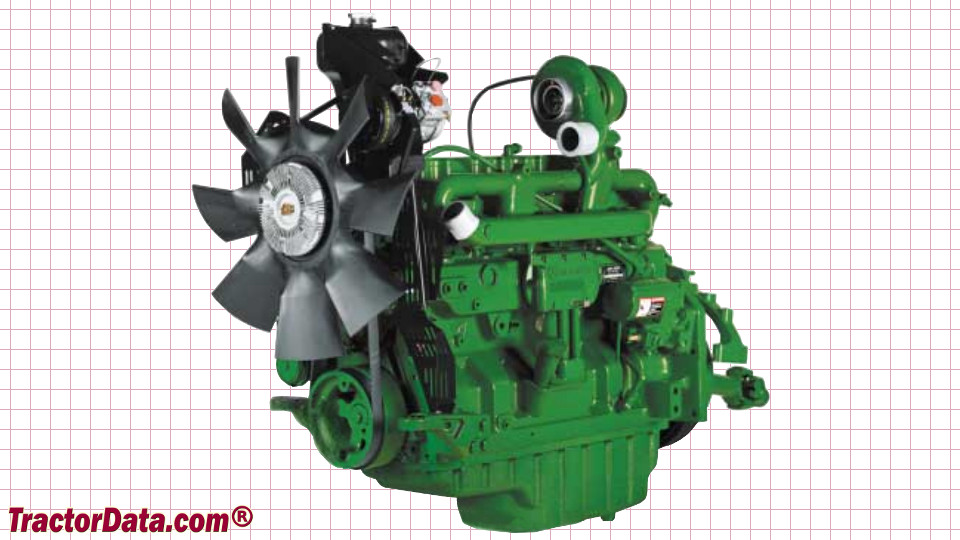

John Deere 7920 Engine
John Deere 7920 engine image
