John Deere 7720 Engine


John Deere 7720 tractor photo
2003 - 2006
7020 Series
Row-Crop tractor
Series map:
7720
7820
128.9kw
141.0kw
Engine Detail
John Deere
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (net)167.6 hp
125.0 kW
Rated Power (gross)172.9 hp
128.9 kW
Maximum Power (net)179.7 hp
134.0 kW
Maximum Power (gross)185.1 hp*With 50KPH transmission a transport boost up to 204HP was available.
138.0 kW
Fuel systemhigh-pressure common rail
Compression17:1
Rated RPM2100
Idle RPM875-2200
Torque607.8 lb-ft
824.2 Nm
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity27.5 qts
26.0 L
Coolant capacity31.1 qts
29.4 L

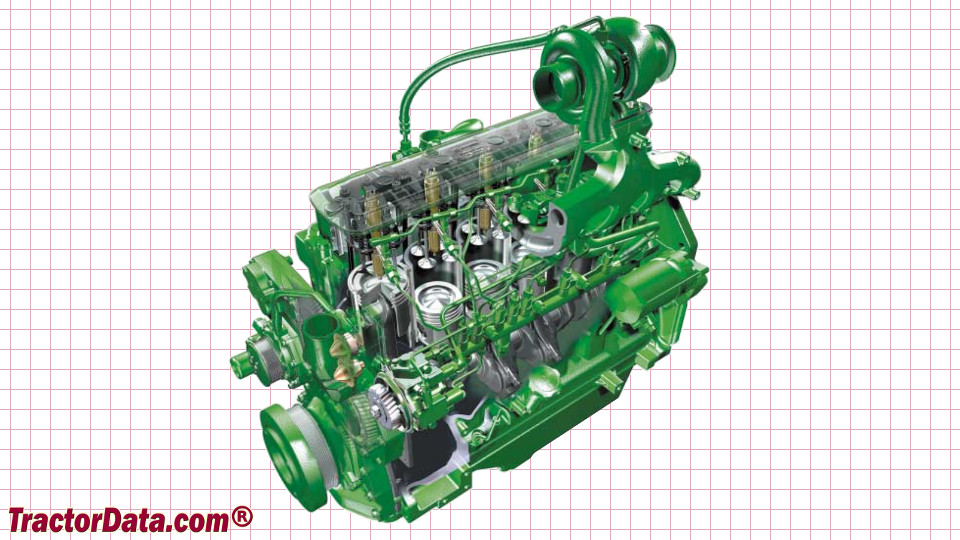

John Deere 7720 Engine
John Deere 7720 engine image
