John Deere 5085M

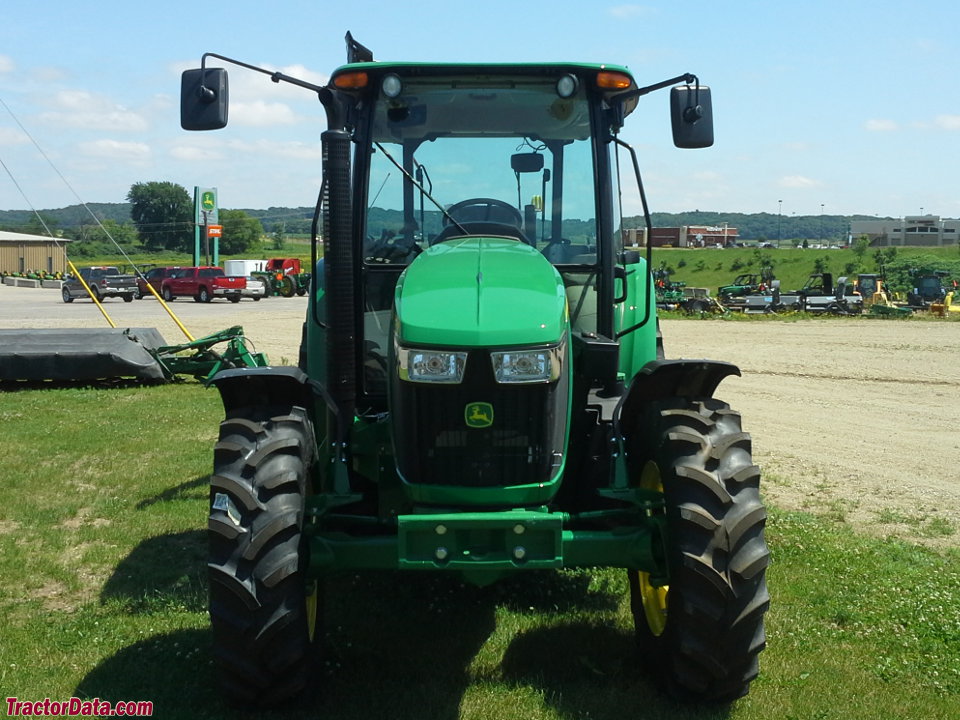

John Deere 5085M tractor photo
2008 - 2018
Model year
5M Series
Utility tractor
Series map:
5075M
5085M
5100M
75.0hp
85.0hp
100.0hp
Production
ManufacturerJohn Deere
Utility tractor
Built in Augusta, Georgia, USA
Original price$47,986 (2012 )
$51,379 (2014 )
John Deere 5085M Engine
John Deere 4.5L 4-cyl diesel
ROPS Fuel tank30 gal
113.6 L
Cab Fuel tank36 gal
136.3 L
Engine details ...
John Deere 5085M Power
Engine (gross)85 hp
63.4 kW
PTO (claimed)70 hp
52.2 kW
PTO (tested)76.68 hp
57.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic rear diff lock
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post foldable ROPS with flat operation platform. Optional isolated platform. Optional cab with air-conditioning. Optional deluxe cab with premium sound package and sunroof.
Hydraulics
Typeopen center
Pressure2828 psi
195.0 bar
Rear valves2 ro 3
Mid valves2 or 3
Pump flow18.4 gpm
69.6 lpm
Total flow24.7 gpm
93.5 lpm
Steering flow6.3 gpm
23.8 lpm
Steering press.2030 psi
140.0 bar
Tractor hitch
Rear Type2/1
Controlposition control and lower-link draft sensing
Rear lift (at 24"/610mm)4,793 lbs
2174 kg
 5,935 lbs (optional)
2692 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E
 540 (SyncShuttle)
Engine RPM540@2100
Dimensions & Tires
Wheelbase90.6 inches
230 cm
Weight6993 to 8600 pounds
Front tire11.2-24
Rear tire16.9-30 (4WD)
Full dimensions and tires ...
5085M Serial Number Location
John Deere 5085M serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps70 (ROPS)
 90 (cab)
Battery volts12
References
5085M references literature
5M Series published in 2013, by John Deere
