John Deere 5083E Transmission


John Deere 5083E tractor photo
2008 - 2012
Model year
5E Limited Series
Utility tractor
Series map:
5083E
5093E
83.0hp
93.0hp
Transmission
TransmissionPowrReverser
Typepartially synchronized
Gears12 forward and reverse
Clutchwet disc
Four gears in each of three ranges with reverser lever. Forward/reverse power shift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized.

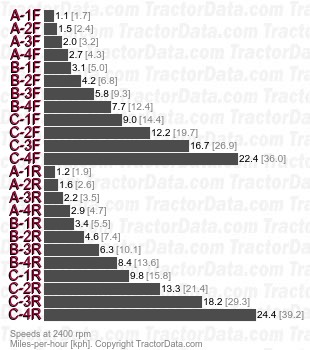

Speeds
With 16.9-30 rear tires.
5083E PowrReverser partially synchronized speeds
