Cub Cadet Sx3100
|
|
| Production | |
| Distributor | Cub Cadet |
| Manufacturer | Yanmar |
| Compact Utility tractor | |
| Variants | |
| Sx3100 TD | mower deck |
| Sx3100 TL | front loader |
| Sx3100TLD | loader and deck |
| Sx3100 TLB | loader backhoe |
| Cub Cadet Sx3100 Engine | |
| Yanmar 1.6L 3-cyl diesel | |
| Fuel tank | 7.1 gal 26.9 L |
 Engine details ... | |
| Cub Cadet Sx3100 Power | |
| Engine (gross) | 31.2 hp 23.3 kW |
| Engine (net) | 30 hp 22.4 kW |
| PTO (claimed) | 23.5 hp 17.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | bevel gear |
| Steering | hydraulic power |
| Wet disc brakes | |
| Two-post ROPS. | |
| Photos | |
 | |
 Cub Cadet Sx3100 photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 4.8 gpm 18.2 lpm |
| Total flow | 10.1 gpm 38.2 lpm |
| Steering flow | 5.3 gpm 20.1 lpm |
| Tractor hitch | |
| Rear Type | 1 |
| Control | position control |
| Rear lift (at 24"/610mm) | 1,209 lbs 548 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Engine RPM | 540@2495 |
| Mid PTO | independent |
| Mid PTO Type | 2100 |
| Engine RPM | 2100@2500 |
| Dimensions & Tires | |
| Wheelbase | 65.2 inches 165 cm |
| Weight | 2,030 lbs 920 kg |
 Full dimensions and tires ... | |
| Cub Cadet Sx3100 attachments | |
| 60" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

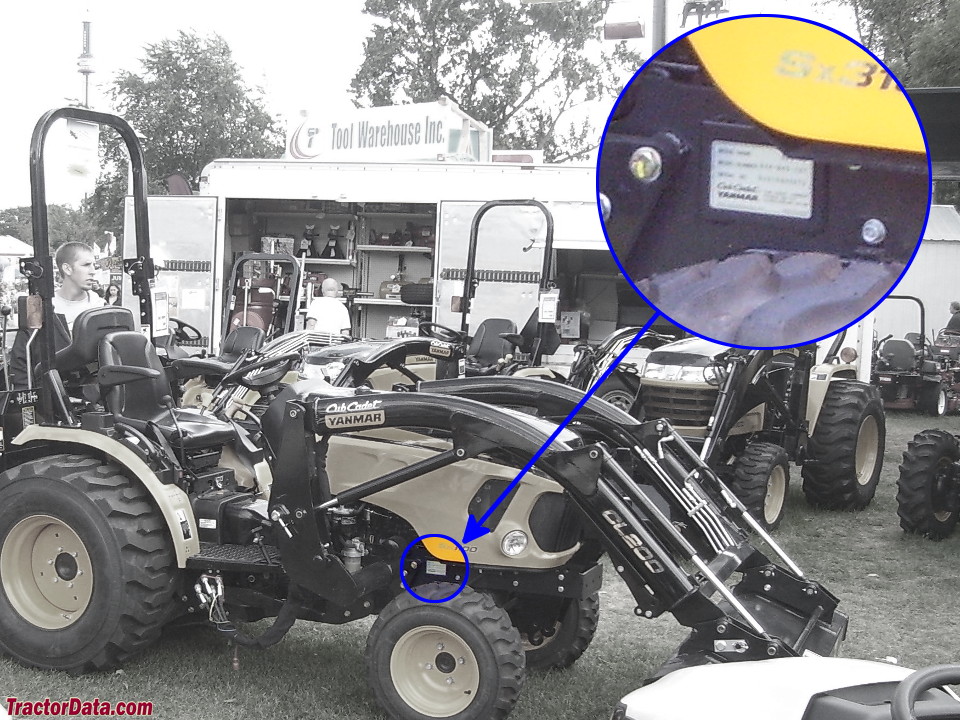

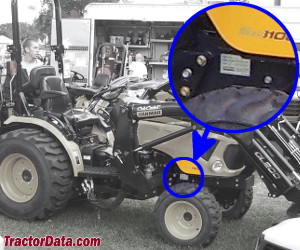

| Sx3100 Serial Number Location | |
 | |
| Serial number plate on the right side of the Cub Cadet Yanmar Sx3100 tractor frame, above the front axle. |
| References | |
 | |
| Sx3100 Compact Tractor published in 2011, by Cub Cadet |
