Tractors > CaseIH > Farmall 140A

CaseIH Farmall 140A Tests



CaseIH Farmall 140A tractor photo
2012 - 2025
Model year
Farmall 100A Series
Utility tractor
Series map:
Farmall 125A
Farmall 140A
125.0hp
140.0hp
OCED Tractor Test 2050A

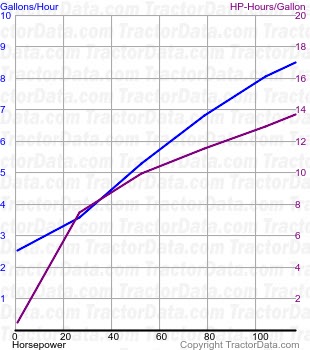

Farmall 140A fuel use from test 863A
OCED Tractor Test 2050A
Diesel 8-speed 4WD
November 27 - December 6, 2012
Link: OCED Tractor Test 2050A file
PTO performance
Max power126.47 hp
94.3 kW
Fuel use7.6 gal/hour
28.8 l/hour
Power at rated engine speed116.24 hp
86.7 kW
Fuel use8.5 gal/hour
32.2 l/hour
Power at rated PTO speed120.22 hp
89.6 kW
Fuel use8.2 gal/hour
31.0 l/hour
Drawbar performance
Max power103.64 hp
77.3 kW
Fuel use8.6 gal/hour
32.6 l/hour
Max pull9034 lbs
4097 kg
