John Deere 6525 Transmission


John Deere 6525 tractor photo
6025 Series
Utility tractor
Series map:
6425
6525
85.0kw
89.5kw
Transmission options
12-speed synchronized
16-speed power shuttle
Transmission
TransmissionJohn Deere SyncroPlus
Typesynchronized
Gears12 forward and 4 reverse
Clutchwet 225mm disc PermaClutch II
Oil capacity58.1 qts
55.0 L
Three gears (1-3) plus reverse (R) in four ranges (A-D).

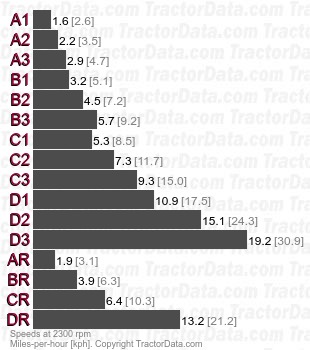

Speeds
6525 SyncroPlus synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepower shuttle
Gears16 forward and reverse
Clutchwet 225mm disc PermaClutch II
Oil capacity58.1 qts
55.0 L
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. 30 KPH and 40 KPH maximum speed options available.

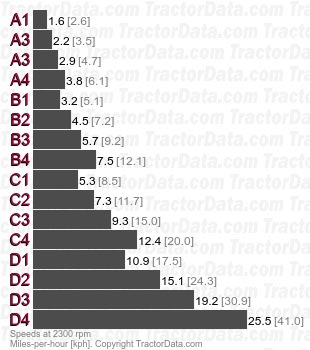

Speeds
6525 PowrReverser power shuttle speeds
