| | 6025 Series | | Utility tractor |
|
Series map:
6225
6325
6425
70.1kw
78.3kw
85.0kw
| Transmission options |
| 12-speed synchronized |
| 16-speed power shuttle |
| Transmission |
| Transmission | John Deere SyncroPlus
|
| Type | synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | wet 225mm disc PermaClutch II
|
| Oil capacity | 58.1 qts
55.0 L
|

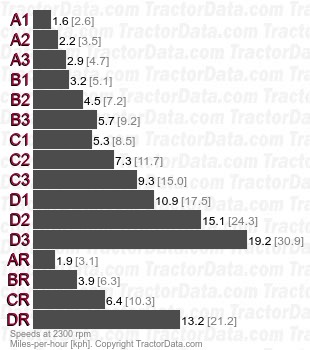

| Three gears (1-3) plus reverse (R) in four ranges (A-D). |
| Speeds |
|
| Transmission |
| Transmission | John Deere PowrReverser
|
| Type | power shuttle
|
| Gears | 16 forward and reverse
|
| Clutch | wet 225mm disc PermaClutch II
|
| Oil capacity | 58.1 qts
55.0 L
|

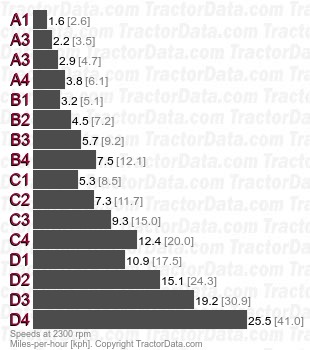

| Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. 30 KPH and 40 KPH maximum speed options available. |
| Speeds |
|
