John Deere 6170R

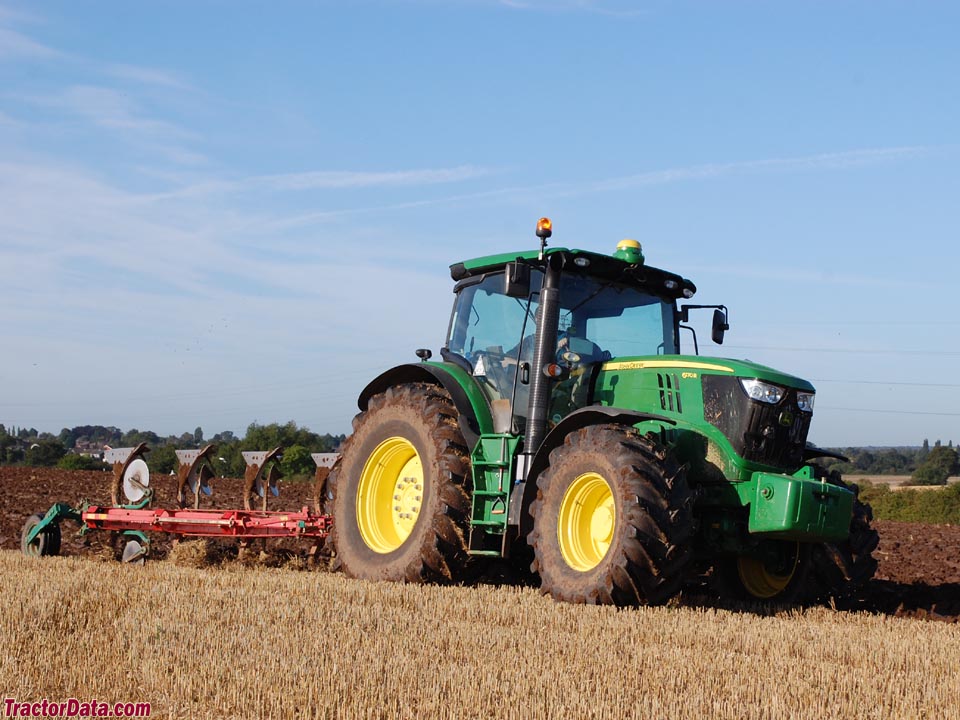

John Deere 6170R tractor photo
2011 - 2014
6R Series
Row-Crop tractor
Series map:
6150R
6170R
6190R
111.9kw
126.8kw
141.7kw
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 6170R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank120.2 gal
455.0 L
 105.7 gal (optional)
400.1 L
Engine details ...
John Deere 6170R Transmissions
20-speed partial power shift
infinitely variable transmission
Transmission details ...
John Deere 6170R Power
Engine (gross)170 hp
126.8 kW
Engine (max)187 hp
139.4 kW
Mechanical
Four-wheel drive
Differential lockElectro-hydraulic rear with wet disc clutch. Self-locking front.
Steeringhydrostatic power
Trailer brakeshydraulic or pneumatic optional
ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections.
Hydraulics
Typepressure flow compensated (PFC)
Rear valves4
Front valves2 (optional)
Pump flow31.1 gpm
117.7 lpm
 41 gpm (optional)
155.2 lpm
Tractor hitch
Rear Type3
Controlload and depth control with electronic lower link sensing
Rear lift (at ends)11,797 lbs
5351 kg
Rear lift (at 24"/610mm)10,694 lbs
4850 kg
Front Hitch3N
Front lift (at ends)7,277 lbs
3300 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E/1000
 540E/1000/1000E
Front PTOindependent
Front PTO Type1000
Engine RPM1000@1995
Dimensions & Tires
Wheelbase110.2 inches
279 cm
Weight16,207 lbs
7351 kg
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
