John Deere 6150R

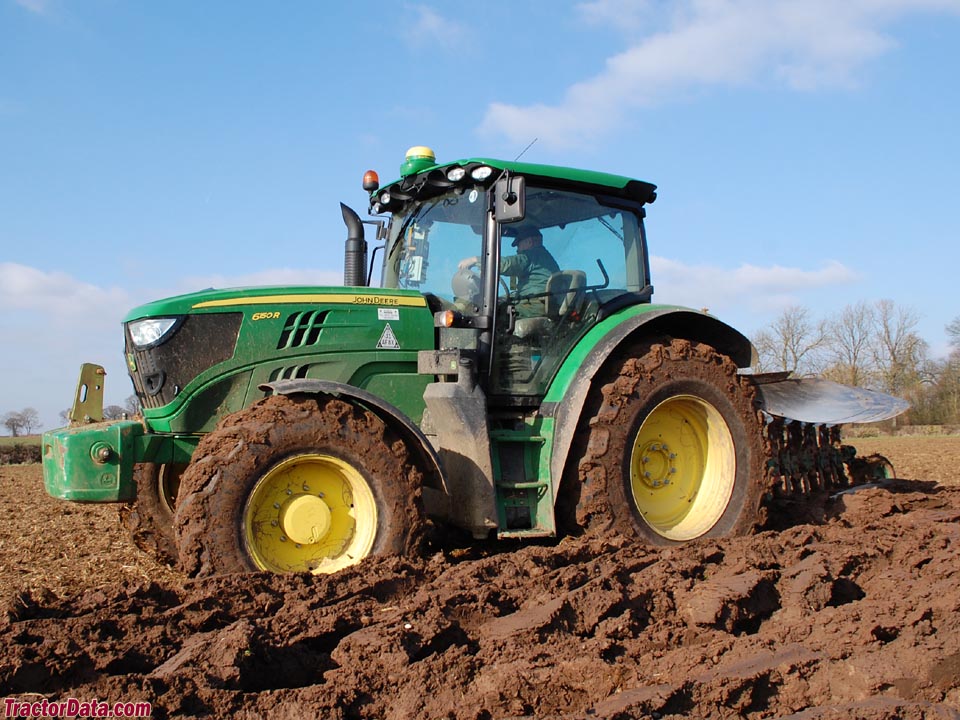

John Deere 6150R tractor photo
2012 - 2016
6R Series
Utility tractor
Series map:
6140R
6150R
6170R
104.4kw
111.9kw
126.8kw
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 6150R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank92.5 gal
350.1 L
Engine details ...
John Deere 6150R Transmissions
20-speed partial power shift
infinitely variable transmission
Transmission details ...
John Deere 6150R Power
Engine (gross)150 hp
111.9 kW
Engine (max)165 hp
123.0 kW
Mechanical
Four-wheel drive
Differential lockElectro-hydraulic rear with wet disc clutch. Self-locking front.
Steeringhydrostatic power
Trailer brakeshydraulic or pneumatic optional
ComfortView cab standard with air-conditioning. Optional hydraulic cab suspension (HCS Plus). AutoTrac ready. ISOBUS implement connections.
Hydraulics
Typepressure flow compensated (PFC)
Rear valves4
Front valves2 (optional)
Pump flow21.1 gpm
79.9 lpm
 32.1 gpm (optional)
121.5 lpm
Tractor hitch
Rear Type3
Controlload and depth control with electronic lower link sensing
Rear lift (at ends)10,584 lbs
4800 kg
Rear lift (at 24"/610mm)9,261 lbs
4200 kg
Front Hitch3N
Front lift (at ends)7,277 lbs
3300 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E/1000
 540E/1000/1000E
Front PTOindependent
Front PTO Type1000
Engine RPM1000@1995
Dimensions & Tires
Wheelbase108.9 inches
276 cm
Weight13,660 lbs
6196 kg
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
