John Deere 6190R Transmission


John Deere 6190R tractor photo
2012 - 2014
6R Series
Row-Crop tractor
Series map:
6170R
6190R
6210R
170.0hp
190.0hp
210.0hp
Transmission options
16-speed partial power shift
20-speed partial power shift
infinitely variable transmission
24-speed eight-speed power shift
Transmission
TransmissionPowerQuad Plus
Typepartial power shift
Gears16 forward and reverse
Clutchhydraulic wet disc
Oil capacity94.05 qts
89.0 L
Four power shift gears (1-4) in four synchronized ranges (A-D) with power reverser lever.
Speeds
With 18.4R46 rear tires.

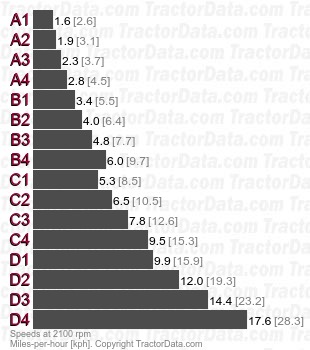

6190R PowerQuad Plus partial power shift speeds
Transmission
TransmissionAutoQuad Plus Eco
Typepartial power shift
Gears20 forward and reverse
Clutchhydraulic wet disc
Oil capacity94.05 qts
89.0 L
Speeds
With 18.4R46 rear tires. 40 KPH transmission is electronically limited in E4 and E4 to 40 KPH (26.1 MPH).

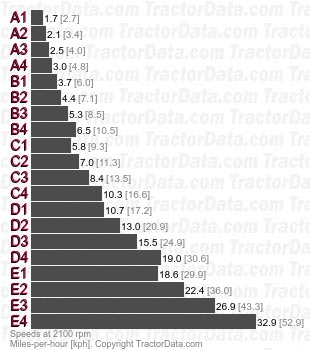

6190R AutoQuad Plus Eco partial power shift speeds
Transmission
TransmissionAutoPowr IVT
Typeinfinitely variable transmission
Gearsinfinite forward and reverse
Oil capacity111 qts
105.1 L
Shift Pattern

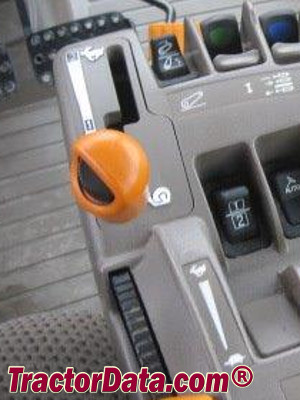

John Deere 6190R transmission controls
Transmission
TransmissionDirectDrive
Typeeight-speed power shift
Gears24 forward and reverse
