John Deere 6170R
| | 2012 - 2014 |
| 6R Series | | Row-Crop tractor |
|
Series map:
6170R
6190R
170.0hp
190.0hp
| Production |
| Manufacturer | John Deere
|
| Row-Crop tractor |
| Built in Waterloo, Iowa, USA |
| Original price was $149,287 in 2014 with AutoQuad |
| John Deere 6170R Power |
| Engine (gross) | 170 hp
126.8 kW
|
| Engine (max) | 187 hp
139.4 kW
|
| PTO (claimed) | 140 hp
104.4 kW
|
| Drawbar (tested) | 135.88 hp
101.3 kW
|
| PTO (tested) | 162.72 hp
121.3 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | electro-hydraulic rear lock with wet disc clutch
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| ComfortView cab standard with air-conditioning. Optional adaptive hydraulic cab suspension. GreenStar and AutoTrac ready with ISOBUS connector. |
| Hydraulics |
| Type | closed center pressure flow compensated (PFC)
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 2 to 4
|
| Pump flow | 41 gpm
155.2 lpm
|
| SCV flow | 26.4 gpm
99.9 lpm
|
| Tractor hitch |
| Rear Type | 3
|
| Control | electro-hydraulic draft sensing
|
| Rear lift (at ends) | 18,740 lbs
8500 kg
|
| Rear lift (at 24"/610mm) | 10,690 lbs
4848 kg
|
| Drawbar | Category 2 with 3,085 to 5,400 pound load rating
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000 (1.375)
|
| | 540/540E/1000 (1.375)
|
| | 540/1000/1000E (1.375)
|
| Engine RPM | 540@1932
|
| | 540E@1775
|
| | 1000@1932
|
| | 1000E@1775
|

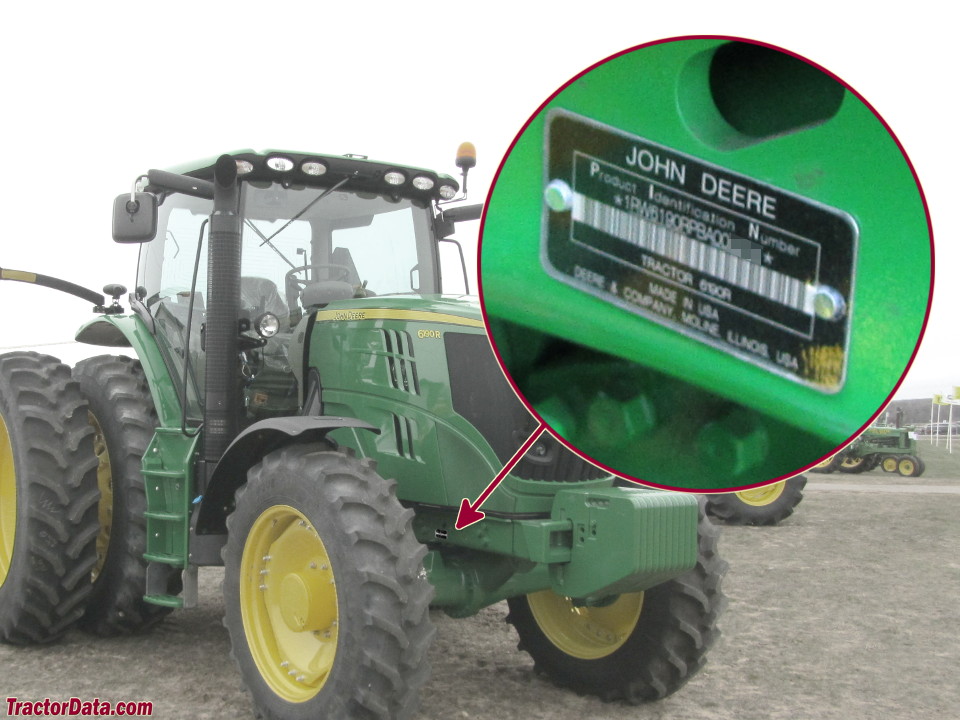

| 6170R Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 120
|
| | 200 (optional)
|
| Battery volts | 12
|
| References |
 |
| 6R Series Tractors published in 2012, by John Deere |
| Operator's Manual Tractors 6140R, 6150R, 6150RH, 6170R, 6190R and 6120R (OMAL211531) published in 2014 |
