John Deere 6115R Transmission


John Deere 6115R tractor photo
2012 - 2014
6R Series
Utility tractor
Series map:
6105R
6115R
6125R
105.0hp
115.0hp
125.0hp
Transmission options
16-speed partial power shift
24-speed partial power shift
infinitely variable transmission
Transmission
TransmissionPowerQuad Plus
Typepartial power shift
Gears16 forward and reverse
Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand reverser.
Speeds
With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward.

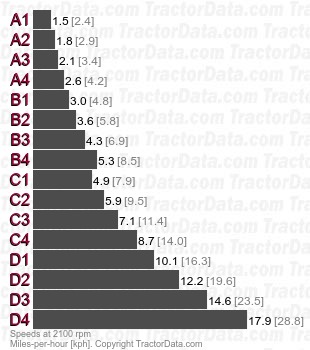

6115R PowerQuad Plus partial power shift speeds
Transmission
TransmissionAutoQuad Plus Eco
Typepartial power shift
Gears24 forward and reverse
ClutchPermaClutch II hydraulic wet disc
Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand reverser. Available in 40 km/h and 50 km/h versions.
Speeds
With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward. 50 km/h version shown, 40 km/h only affects gear F4.

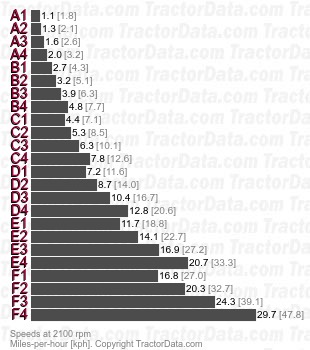

6115R AutoQuad Plus Eco partial power shift speeds
Transmission
TransmissionAutoPowr IVT
Typeinfinitely variable transmission
Gearsinfinite forward and reverse
