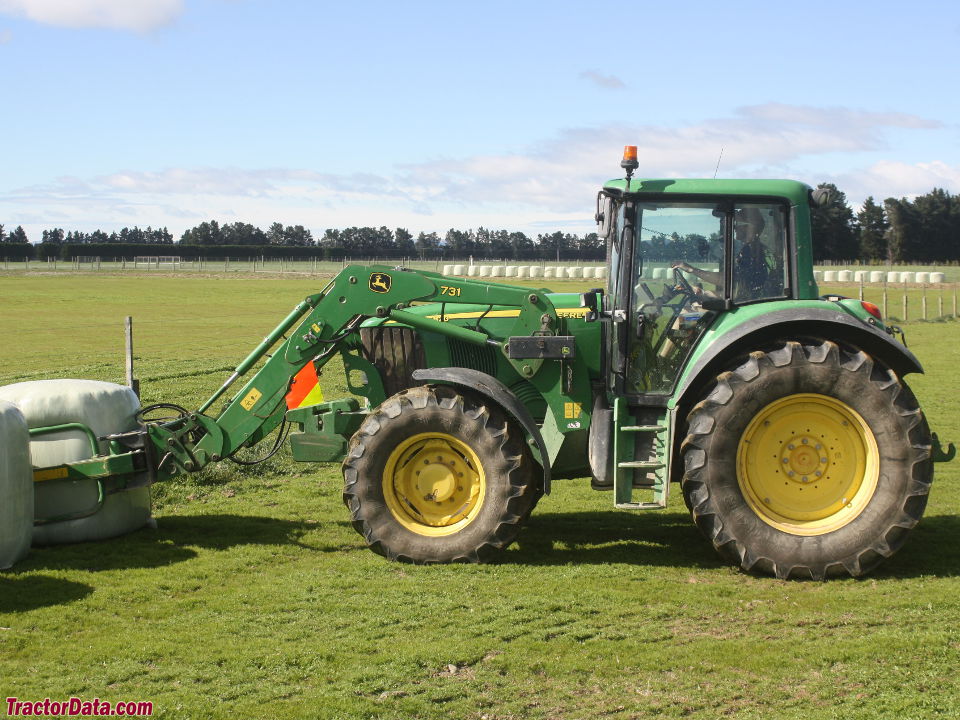

John Deere 6820 Premium
| | 2001 - 2006 |
|
| 6020 Series | | Utility tractor |
|
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| John Deere 6820 Premium Power |
| Engine (gross) | 140 hp
104.4 kW
|
| Engine (net) | 135 hp
100.7 kW
|
| Engine (max) | 151 hp
112.6 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | electro-hydraulic wet disc
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. Optional hydraulic cab suspension. AutoTrac and GreenStar compatible. |
| Hydraulics |
| Type | pressure flow compensating (PFC)
|
| Pressure | 2900 psi
200.0 bar
|
| Pump flow | 25.4 gpm
96.1 lpm
|
| Tractor hitch |
| Rear Type | II/IIIN
|
| Control | electronic lower link draft control
|
| Rear lift | 18,520 lbs
8400 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic wet disc
|
| Rear PTO Type | 540/540E/1000
|
| Engine RPM | 540@1995
|
| | 540E@1743
|
| | 1000@1995
|
| Front PTO Type | 1000
|
| Engine RPM | 1000@1995
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 90
|
| | 115
|
| | 150
|
| Battery volts | 12
|
