John Deere 6520 Premium

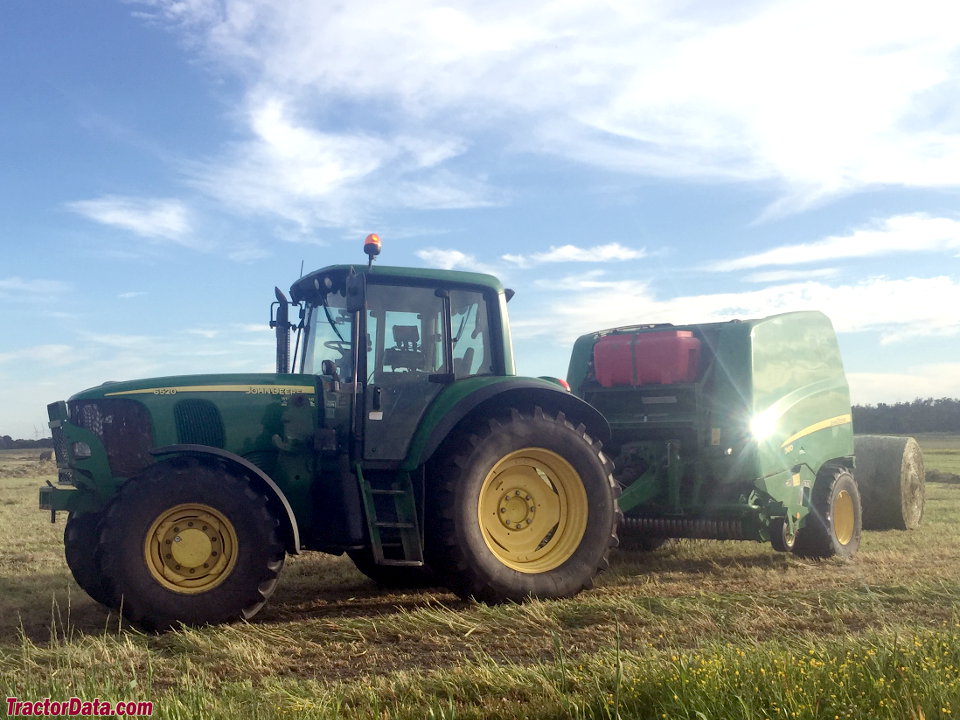

John Deere 6520 Premium tractor photo
2001 - 2006
Model year
6020 Series
Utility tractor
Series map:
6520 Premium
6620 Premium
82.0kw
93.2kw
Production
ManufacturerJohn Deere
Utility tractor
John Deere 6520 Premium Engine
John Deere 6.8L 6-cyl diesel
Fuel tank54.7 gal
207.0 L
Engine details ...
John Deere 6520 Premium Power
Engine (net)110 hp
82.0 kW
PTO (claimed)97 hp
72.3 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Cab standard.
Hydraulics
Typeclosed center load sensing
Pressure2900 psi
200.0 bar
Pump flow25.4 gpm
96.1 lpm
Tractor hitch
Rear TypeII/IIIN
Rear lift14,590 lbs
6618 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Weight11,201 lbs
5080 kg
Front tire16.9R24
Rear tire18.4R38
Full dimensions and tires ...
6520 Premium Serial Numbers
Location:Right side of main tractor frame.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
 115
Battery volts12
References
6520 Premium references literature
6020 Series published in 2003, by John Deere
