AGCO DT180A

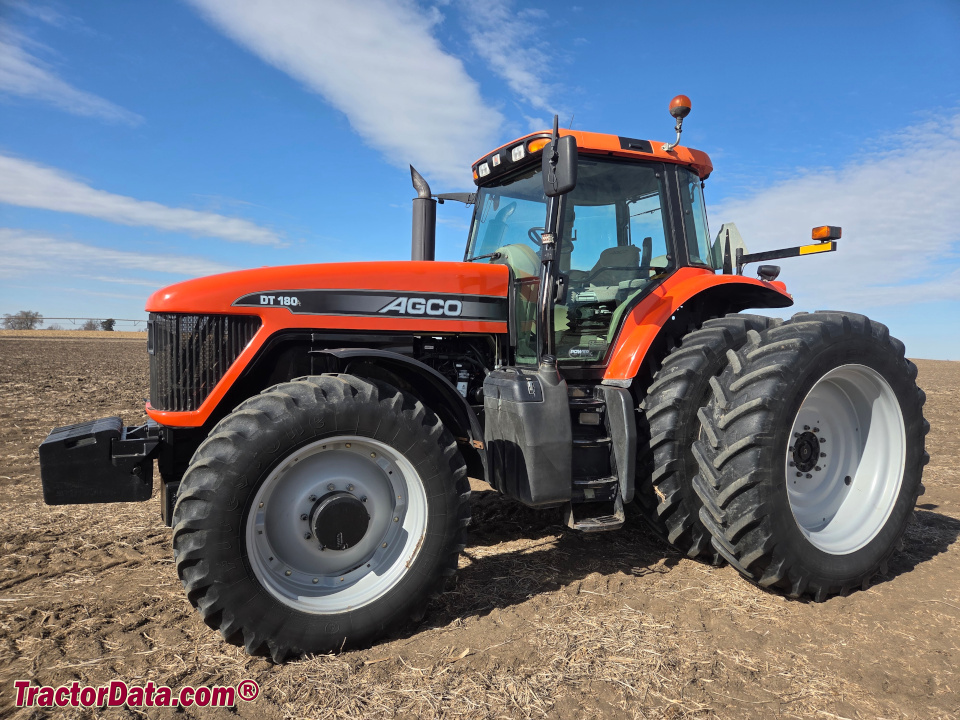

AGCO DT180A tractor photo
2005 - 2008
DT-A Series
Row-Crop tractor
Series map:
DT180A
DT200A
215.0hp
235.0hp
Production
ManufacturerAGCO
Row-Crop tractor
Built in Beauvais, France
Variants
8450similar Massey Ferguson model
AGCO DT180A Engine
Sisu Diesel 7.4L 6-cyl diesel
Fuel tank158.5 gal
599.9 L
Engine details ...
AGCO DT180A Transmission
continuously variable transmission
Transmission details ...
AGCO DT180A Power
Engine215 hp
160.3 kW
PTO (claimed)180 hp
134.2 kW
Drawbar (tested)155.2 hp
115.7 kW
PTO (tested)210.4 hp
156.9 kW
Performance test details ...
Mechanical
Four-wheel drive
Steeringhydrostatic power
Hydraulic wet disc brakes
Cab standard with optional pneumatic suspension. Datatronics 3, Fieldstar, and Auto-Guide compatible.
Photos
No photos of the AGCO DT180A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure flow compensated (PFC)
Pressure2900 psi
200.0 bar
Valves4 or 5
Total flow39 gpm
147.6 lpm
Tractor hitch
Rear Type3
Rear lift (at 24"/610mm)14,400 lbs
6531 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase121 inches
307 cm
Weight19,136 lbs
8680 kg
Full dimensions and tires ...
DT180A Serial Numbers
Location:Rear of tractor
2005P001001
2006R001001
2007S001001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
