Tractors > John Deere > 6615

John Deere 6615 Engine



John Deere 6615 tractor photo
2005 - 2010
Utility tractor
Series map:
6415
6615
7515
80.5kw
89.7kw
104.4kw
Engine Detail
John Deere 6068T
turbocharged diesel
6-cylinder
liquid-cooled
Displacement414.4 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power120.3 hp
89.7 kW
Rated RPM2300
Torque334 lb-ft
452.9 Nm
Torque RPM1400
Starter volts12
Coolant capacity26.4 qts
25.0 L
Engine Oil

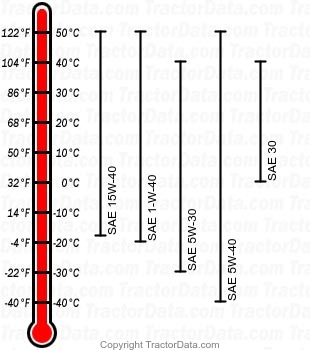

6615 diesel engine oil chart
Oil capacity20.1 qts
19.0 L
