John Deere 6125J Engine


John Deere 6125J tractor photo
2010 -
6J Series
Utility tractor
Series map:
6110J
6125J
6145J
82.0kw
93.2kw
108.1kw
Engine Detail
John Deere 6068 PowerTech
turbocharged diesel
6-cylinder
liquid-cooled
Displacement414.4 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power125 hp
93.2 kW
Fuel systemrotary injection pump
Rated RPM2300
Torque365.8 lb-ft
496.0 Nm
Torque RPM1400
Starter volts12
Coolant capacity26.4 qts
25.0 L
Engine Oil

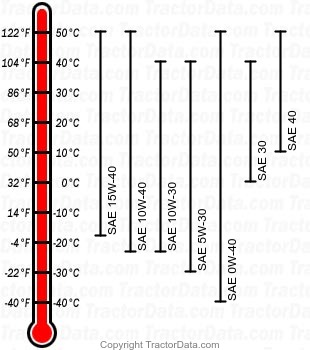

6125J diesel engine oil chart
Oil capacity20.1 qts
19.0 L
