Tractors > John Deere > 9460RT

John Deere 9460RT



John Deere 9460RT tractor photo
2012 - 2014
9R/RT Series
Agricultural Crawler tractor
Series map:
9460RT
9510RT
460.0hp
510.0hp
Production
ManufacturerJohn Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA
Original price was $401,154 in 2014
Variants
9460R4WD
9460RTcrawler
John Deere 9460RT Engine
John Deere 13.5L 6-cyl diesel
Fuel tank340 gal
1286.9 L
Engine details ...
John Deere 9460RT Transmission
18-speed full power shift
Transmission details ...
John Deere 9460RT Power
Engine (gross)460 hp
343.0 kW
Engine (net)442 hp
329.6 kW
PTO (claimed)319 hp
237.9 kW
Drawbar (tested)353.03 hp
263.3 kW
PTO (tested)359.80 hp
268.3 kW
Performance test details ...
Mechanical
Drivecrawler
Final drivesoutboard planetary
Steeringhydrostatic power differential
Hydraulic wet disc brakes
CommandView II cab standard with air-conditioning.
Photos
No photos of the John Deere 9460RT are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center pressure flow compensated
Pressure2900 psi
200.0 bar
Valves4 to 6
Pump flow48 gpm
181.7 lpm
 78 gpm (High-Flow)
295.2 lpm
SCV flow37 gpm
140.0 lpm
 45 gpm (19.1mm SCV)
170.3 lpm
Tractor hitch
Rear Type4N/3
 4N/4
Controlelectronic draft sensing
Rear lift15,300 lbs
6940 kg
 20,000 lbs (optional)
9072 kg
DrawbarCategory 4 standard with heavy-duty support . Optional Cat. 4 reinforcement to 4,581 kg (wide swing) or 4,900 kg. Optional Category 5 drawbar rated to 4,581 kg (wide swing) or 5,440 kg. (2,470 kg)
Power Take-off (PTO)
Rear PTOindependent (optional)
Rear PTO Type1000 (1.75)
Dimensions & Tracks
Wheelbase116 inches
294 cm
Weight44910 to 46845 pounds
30-inch tracks
Full dimensions and tracks ...

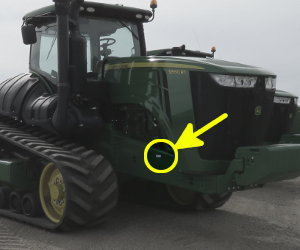

9460RT Serial Number Location
John Deere 9460RT serial number location
On main tractor frame, front-right side.
Electrical
Groundnegative
Charging systemalternator
Charging amps200
Batteries3
Battery CCA925
Battery volts12
