John Deere 9560R Tests


John Deere 9560R tractor photo
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor
Series map:
9510R
9560R
510.0hp
560.0hp
OCED Tractor Test 2044

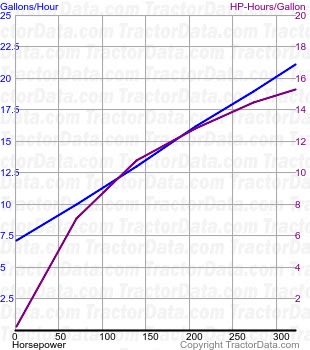

9560R fuel use from test 835
OCED Tractor Test 2044
Diesel 18-speed 4WD
October 9 - 26, 2012
Link: OCED Tractor Test 2044 file
PTO performance
Max power364.23 hp
271.6 kW
Fuel use21.1 gal/hour
79.9 l/hour
Power at rated engine speed321.78 hp
240.0 kW
Fuel use21.1 gal/hour
79.9 l/hour
Power at rated PTO speed357.53 hp
266.6 kW
Fuel use21.3 gal/hour
80.6 l/hour
Drawbar performance
Max power454.33 hp
338.8 kW
Fuel use29.0 gal/hour
109.8 l/hour
Gear 7 used for power test.
Max pull44000 lbs
19958 kg
Gear 1 used for pull test.
