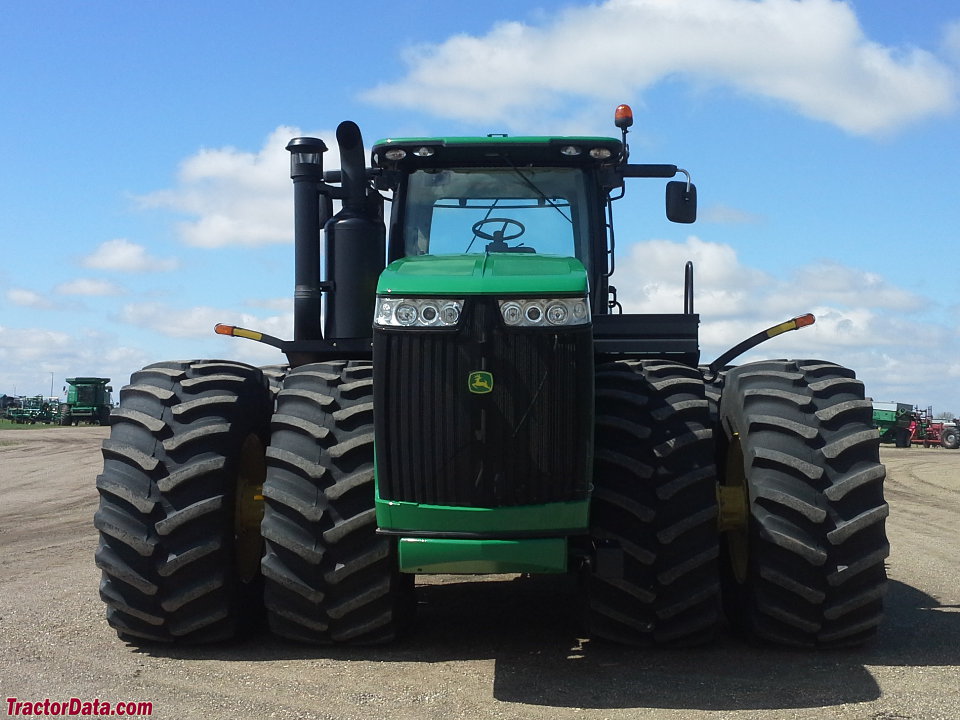

John Deere 9510R
| | 2012 - 2014 |
| 9R/RT Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer | John Deere
|
| Four-wheel Drive (4WD) tractor |
| Built in Waterloo, Iowa, USA |
| Original price was $381,687 in 2014 |
| John Deere 9510R Power |
| Engine (gross) | 510 hp
380.3 kW
|
| Engine (max) | 561 hp
418.3 kW
|
| PTO (claimed) | 319 hp
237.9 kW
|
| Drawbar (tested) | 410.97 hp
306.5 kW
|
| PTO (tested) | 368.33 hp
274.7 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary with double-reduction axle
|
| Differential lock | fully-locking electro-hydraulic
|
| Steering | hydraulic power
|
| Hydraulic wet disc brakes |
| Trailer brakes | hydraulic optional
|
| CommandView II cab standard with air-conditioning. |
| Hydraulics |
| Type | closed center pressure flow compensated
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4 to 6
|
| Pump flow | 48 gpm
181.7 lpm
|
| | 78 gpm (High-Flow)
295.2 lpm
|
| SCV flow | 37 gpm
140.0 lpm
|
| | 45 gpm (19.1mm SCV)
170.3 lpm
|
| Tractor hitch |
| Rear Type | 4N/4
|
| Control | electronic draft sensing
|
| Rear lift | 15,300 lbs
6940 kg
|
| | 20,000 lbs (optional)
9072 kg
|
| Drawbar | Category 5 standard heavy-duty support and 5,440 kg load rating. (12,000 pound)
|
| Power Take-off (PTO) |
| Rear PTO | independent (optional)
|
| Rear PTO Type | 1000 (1.75)
|
| 9510R Serial Number Location |
 |
| Serial number plate on the front-right of the tractor frame, ahead of the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 200
|
| Charging volts | 12
|
| Batteries | 3
|
| Battery CCA | 925
|
| Battery volts | 12
|
