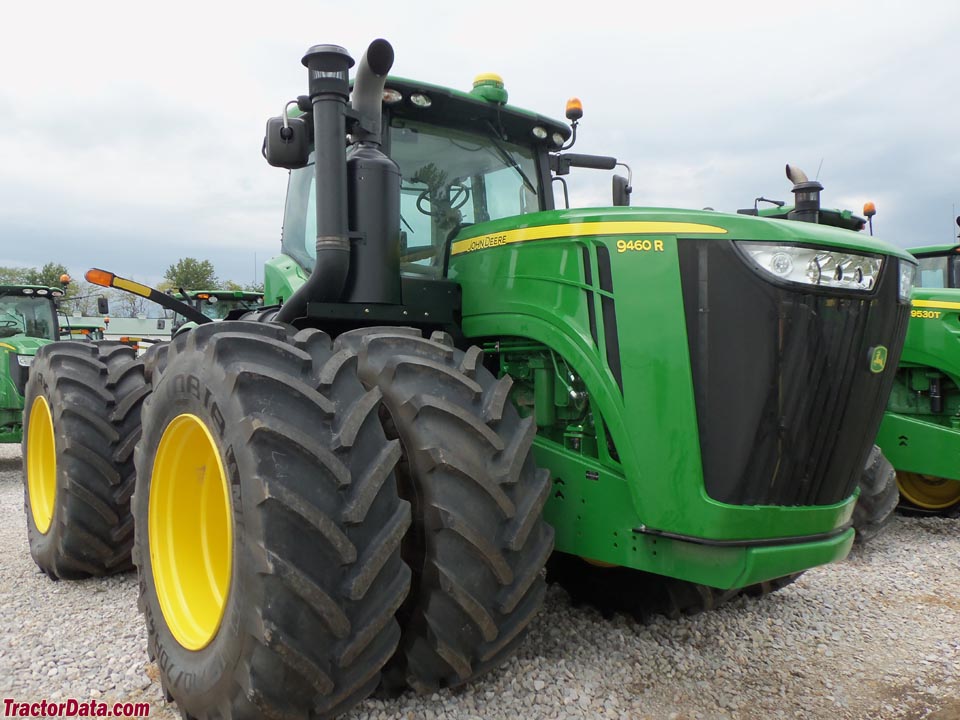

John Deere 9460R
|
|
| Production | |
| Manufacturer | John Deere |
| Four-wheel Drive (4WD) tractor | |
| Built in Waterloo, Iowa, USA | |
| Original price was $337,031 in 2014 | |
| John Deere 9460R Engine | |
| John Deere 13.5L 6-cyl diesel | |
| Fuel tank | 350 gal 1324.8 L |
 Engine details ... | |
| John Deere 9460R Transmissions | |
| 24-speed partial power shift | |
| 18-speed full power shift | |
 Transmission details ... |
| John Deere 9460R Power | |
| Engine (gross) | 460 hp 343.0 kW |
| Engine (max) | 506 hp 377.3 kW |
| PTO (claimed) | 319 hp 237.9 kW |
| Drawbar (tested) | 367.43 hp 274.0 kW |
| PTO (tested) | 374.45 hp 279.2 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | fully-locking electro-hydraulic |
| Steering | hydraulic power |
| Hydraulic wet disc brakes | |
| Trailer brakes | hydraulic optional |
| CommandView II cab standard with air-conditioning. | |
| Photos | |
 | |
 John Deere 9460R photos... | |
| Hydraulics | |
| Type | closed center pressure flow compensated |
| Pressure | 2900 psi 200.0 bar |
| Valves | 4 to 6 |
| Pump flow | 44 gpm 166.5 lpm |
| 48 gpm (PowerShift) 181.7 lpm | |
| 78 gpm (High-Flow) 295.2 lpm | |
| SCV flow | 37 gpm 140.0 lpm |
| 45 gpm (19.1mm SCV) 170.3 lpm | |
| Tractor hitch | |
| Rear Type | 4N/3 |
| 4N/4 | |
| Control | electronic draft sensing |
| Rear lift | 15,300 lbs 6940 kg |
| 20,000 lbs (optional) 9072 kg | |
| Drawbar | Category 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg) |
| Power Take-off (PTO) | |
| Rear PTO | independent (optional) |
| Rear PTO Type | 1000 (1.75) |
| Dimensions & Tires | |
| Wheelbase | 137.8 inches 350 cm |
| Weight | 39010 to 41715 pounds |
| Front tire | 710/70R42 |
| Rear tire | 710/70R42 |
 Full dimensions and tires ... | |
| 9460R Serial Number Location | |
 | |
| Serial number plate on the front-right of the tractor frame, ahead of the front axle. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 200 |
| Charging volts | 12 |
| Batteries | 3 |
| Battery CCA | 925 |
| Battery volts | 12 |
