John Deere 9460R Tests


John Deere 9460R tractor photo
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor
Series map:
9410R
9460R
9510R
410.0hp
460.0hp
510.0hp
OCED Tractor Test 2040

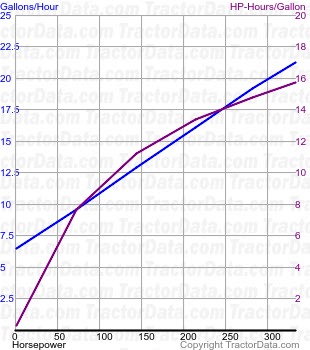

9460R fuel use from test 831
OCED Tractor Test 2040
Diesel 18-speed 4WD
September 25 - October 4, 2012
Link: OCED Tractor Test 2040 file
PTO performance
Max power374.45 hp
279.2 kW
Power at rated engine speed333.03 hp
248.3 kW
Fuel use21.2 gal/hour
80.2 l/hour
Power at rated PTO speed369.68 hp
275.7 kW
Fuel use21.5 gal/hour
81.4 l/hour
Drawbar performance
Max power367.43 hp
274.0 kW
Fuel use23.9 gal/hour
90.5 l/hour
Gear 7 used for power test.
Max pull43371 lbs
19673 kg
Gear 1 used for pull test.
