John Deere 9410R Tests


John Deere 9410R tractor photo
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor
Series map:
9360R
9410R
9460R
360.0hp
410.0hp
460.0hp
OCED Tractor Test 2039

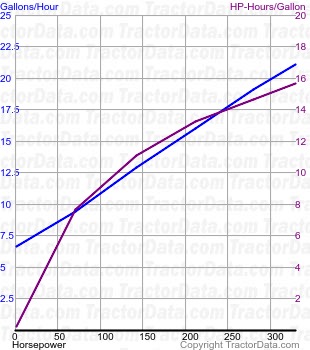

9410R fuel use from test 830
OCED Tractor Test 2039
Diesel 18-speed 4WD
September 17 - October 8, 2012
Link: OCED Tractor Test 2039 file
PTO performance
Max power377.93 hp
281.8 kW
Fuel use21.2 gal/hour
80.2 l/hour
Power at rated engine speed328.75 hp
245.1 kW
Fuel use21.0 gal/hour
79.5 l/hour
Power at rated PTO speed368.32 hp
274.7 kW
Fuel use21.5 gal/hour
81.4 l/hour
Drawbar performance
Max power321.85 hp
240.0 kW
Fuel use21.8 gal/hour
82.5 l/hour
Gear 7 used for power test.
Max pull36433 lbs
16526 kg
Gear 2 used for pull test.
