Tractors > International Harvester > TD-18A Series 182

International Harvester TD-18A Series 182 Tests



International Harvester TD-18A Series 182 tractor photo
1949 - 1958
Model year
Agricultural Crawler tractor
Series map:
TD-18A
130.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 588: 1450 RPM diesel 6-speed crawler
NTTL 629: 1550 RPM diesel 6-speed crawler
Nebraska Tractor Test 588

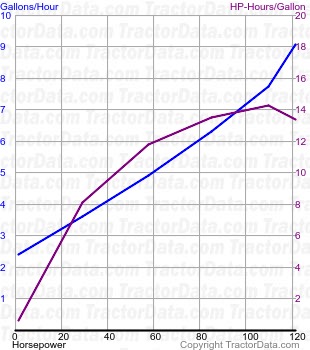

TD-18A Series 182 fuel use from test 588
Nebraska Tractor Test 588
1450 RPM diesel 6-speed crawler
August 10 - 15, 1956
Link: Nebraska Tractor Test 588 file
Belt power (max)121.62 hp
90.7 kW
Belt fuel use (max)9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power100.14 hp
74.7 kW
Gear 2 used for power test.
Max pull25,143 lbs
11404 kg
Gear 1 used for pull test.
Nebraska Tractor Test 629
1550 RPM diesel 6-speed crawler
September 3 - 14, 1957
Link: Nebraska Tractor Test 629 file
Drawbar performance
Max power106.66 hp
79.5 kW
Gear 2 used for power test.
Max pull26,751 lbs
12134 kg
Gear 1 used for pull test.
