International Harvester TD-14A
| | 1949 - 1958 |
|
| Agricultural Crawler tractor |
|
Series map:
TD-14A
80.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | International Harvester
|
| Agricultural Crawler tractor |
| Built in Melrose Park, Illinois, USA |
| International Harvester TD-14A Power |
| Drawbar (claimed) | 60.5 hp
45.1 kW
|
| Belt (claimed) | 72 hp
53.7 kW
|
| Drawbar (tested) | 62.68 hp
46.7 kW
|
| Belt (tested) | 71.79 hp
53.5 kW
|
 Performance test details ... |
| Mechanical |
| Drive | crawler
|
| Contracting band brakes |
| Open operator station. |
| Power Take-off (PTO) |
| Rear PTO | optional
|
| Rear PTO Type | 540
|
| TD-14A Serial Number Location |
 |

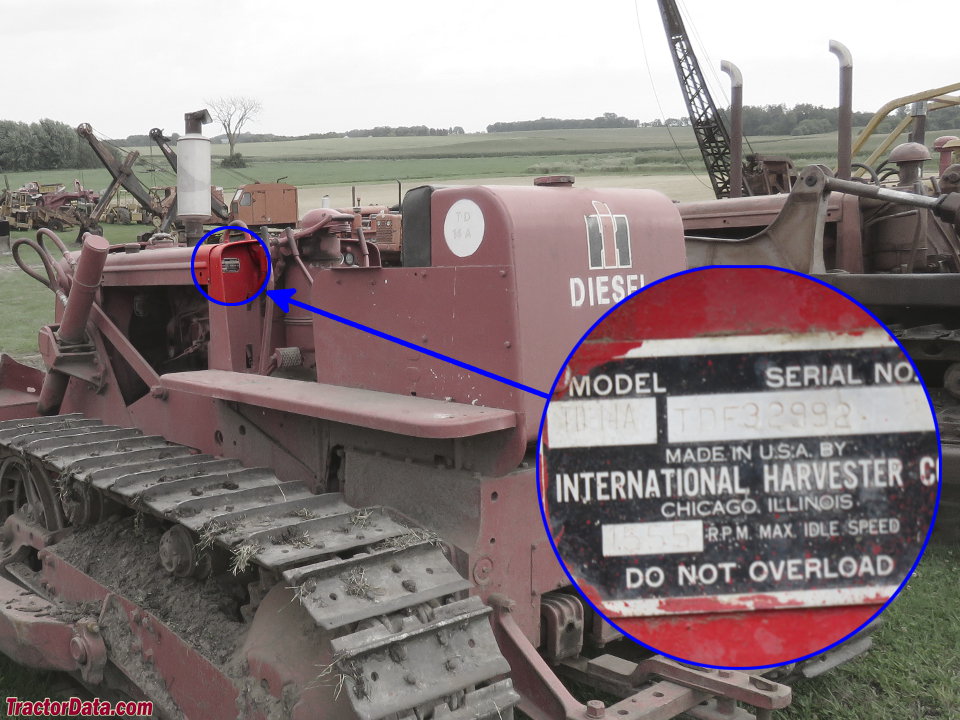

| Serial number plate on the upper-left of the TD-14A dashboard. |
| TD-14A Serial Numbers |
| 1949 | 26760 (TDF)
|
| 1950 | 27082 (TDF)
|
| 1951 | 29361 (TDF)
|
| 1952 | 32427 (TDF)
|
| 1953 | 34525 (TDF)
|
| 1954 | 37344 (TDF)
|
| 1955 | 39061 (TDF)
|
| Final | 39300 (TDF)
|
| 1955 | 39301 (TD141)
|
| 1956 | 40862 (TD141)
|
| Final | 41550 (TD141)
|
| 1956 | 41551 (TD142)
|
| 1957 | 43968 (TD142)
|
| 1958 | 45010 (TD142)
|
| Final | 45558 (TD142)
|
FAQ: How to read a serial number table.
|
| Belt Pulley |
| Diameter | 11.75 inches
29 cm
|
| Width | 11 inches
27 cm
|
| RPM | 875
|
| Speed | 2692 ft/min
820.52 meters/min
|
| References |
 |
| TD14A-422-2 Diesel Crawler Tractor and International Drott Skid-Shovel published by International Harvester |
| Crawler Tractors for Agriculture - Confidential Sales Manual published in 1951, by International Harvester |
| TD-14A Diesel Crawler published in 1950, by International Harvester |
