J.I. Case 20-40
| | 1912 - 1919 |
| Standard-tread tractor |
|
Series map:
20-40
44.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | J.I. Case
|
| Standard-tread tractor |
| Built in Racine, Wisconsin, USA |
| Total built | 4,465
|
| Original price | $2,100 (1916)
|
| J.I. Case 20-40 Power |
| Drawbar (claimed) | 20 hp
14.9 kW
|
| Belt (claimed) | 40 hp
29.8 kW
|
| Drawbar (tested) | 24.66 hp
18.4 kW
|
| Belt (tested) | 42.80 hp
31.9 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| Open operator station. Optional four-post steel cab. |

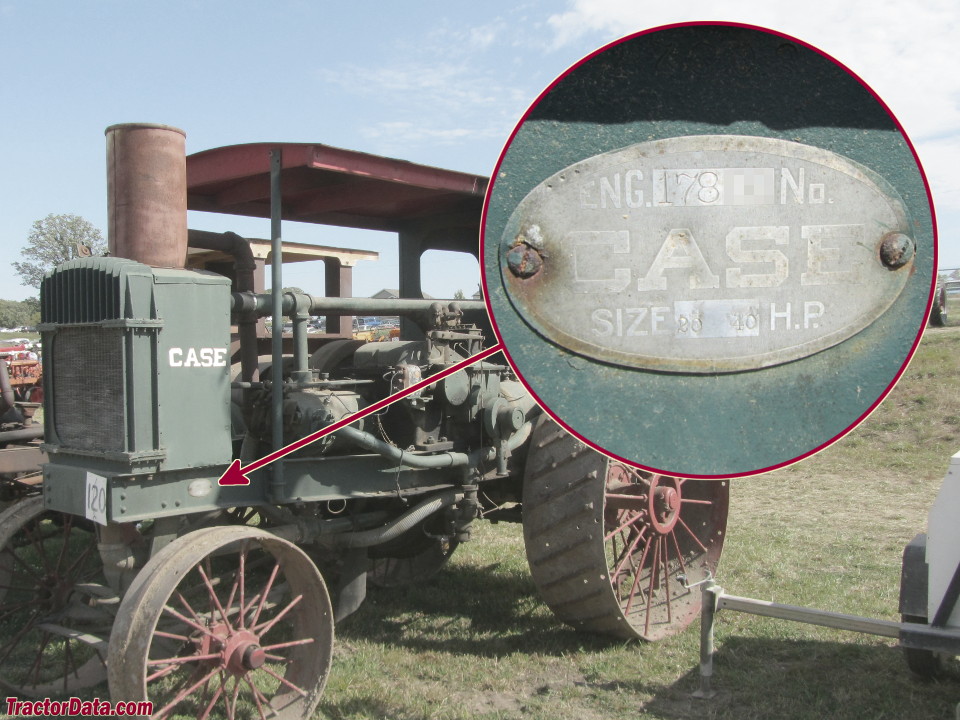

| 20-40 Serial Number Location |
 |
| Serial number plate on left side of tractor frame, above the front axle. |
| Belt Pulley |
| Diameter | 24 inches
60 cm
|
| Width | 8.5 inches
21 cm
|
| References |
 |
| Power Farming Machinery published in 1919, by J.I. Case |
