Cockshutt 1655 Transmission


Cockshutt 1655 tractor photo
1970 - 1975
Row-Crop tractor
Series map:
1555
1655
1755
58.9hp*
77.8hp*
95.6hp*
*Estimated engine power for comparison only.

Note: the Cockshutt model 1655 is the same as the Oliver 1655. The following data is from the 1655 listing.
Transmission options
18-speed partial power shift
6-speed helical gear
Transmission
TransmissionHydraul-Shift
Typepartial power shift
Gears18 forward and 6 reverse
Clutch304.8mm dry disc
The Hydraul-Shift transmission allows a three-speed power shift between over, direct, and under drive for each gear.
Speeds
With 16.9-38 rear tires.

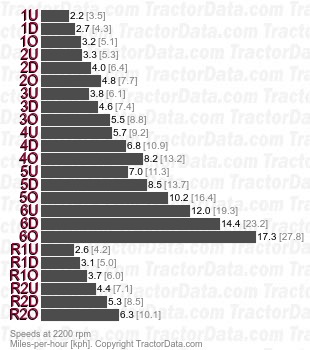

1655 Hydraul-Shift partial power shift speeds
Transmission
Typehelical gear
Gears6 forward and 2 reverse
Clutch304.8mm dry disc
Oil capacity32 qts
30.3 L
Speeds
With 16.9-38 rear tires.

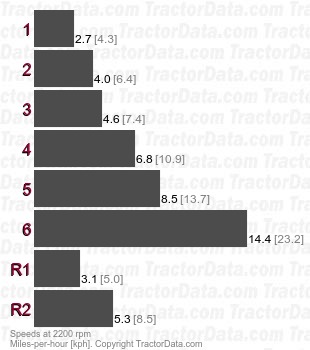

1655  helical gear speeds
