| | 1964 - 1969 |
| Row-Crop tractor |
|
Series map:
1650
1750
1850
73.3hp*
88.9hp*
102.2hp*
*Estimated engine power for comparison only.
Note: the Cockshutt model 1750 is the same as the Oliver 1750. The following data is from the 1750 listing. |
| Transmission options |

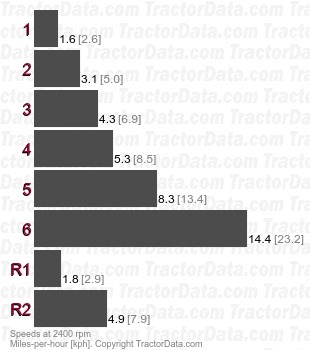

| 6-speed unsynchronized gear |
| 12-speed partial power shift |
| 18-speed partial power shift |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 6 forward and 2 reverse
|
| Speeds |
| With 18.4-34 rear tires. |
|
| Transmission |
| Transmission | Oliver Hydra-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive. |
| Speeds |
|
| Transmission |
| Transmission | Hydraul-Shift
|
| Type | partial power shift
|
| Gears | 18 forward and 6 reverse
|
| Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive. |
