| | 1964 - 1969 |
| Row-Crop tractor |
|
Series map:
1550
1650
1750
58.9hp*
73.3hp*
88.9hp*
*Estimated engine power for comparison only.
Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing. |
| Transmission options |

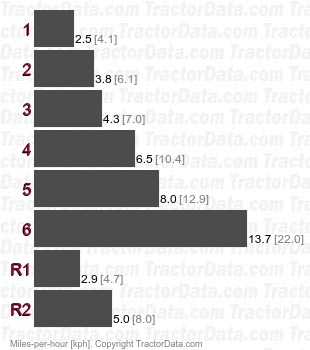

| 6-speed unsynchronized |

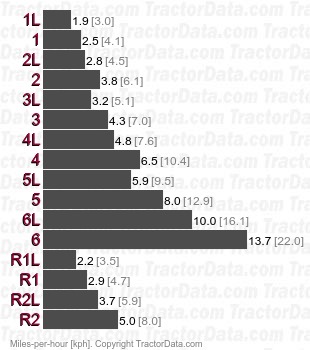

| 12-speed two-speed power shift |
| 18-speed partial power shift |
| Transmission |
| Transmission | helical gear
|
| Type | unsynchronized
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 304.8mm dry disc
|
| Speeds |
|
| Transmission |
| Transmission | Hydra-Power
|
| Type | two-speed power shift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Speeds |
|
| Transmission |
| Transmission | Hydraul-Shift
|
| Type | partial power shift
|
| Gears | 18 forward and 6 reverse
|
| Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive. |
