John Deere 6830

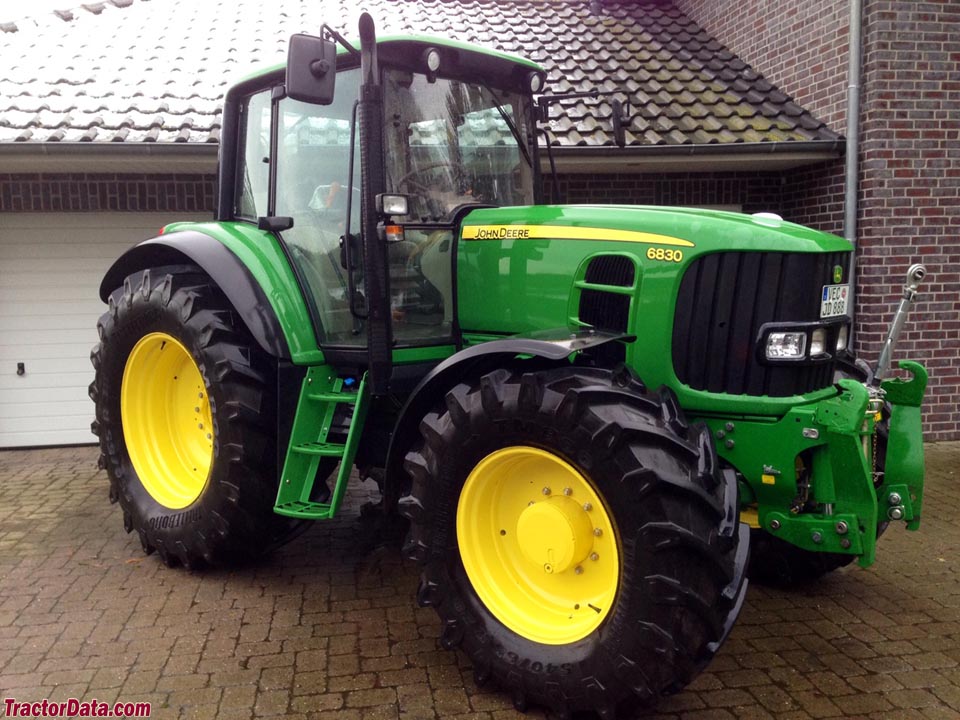

John Deere 6830 tractor photo
2006 - 2011
Model year
Series map:
6630
6830
6930
100.7kw
108.1kw
115.6kw
Production
ManufacturerJohn Deere
John Deere 6830 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...
John Deere 6830 Transmissions
20-speed partial power shift
32-speed partial power shift
Transmission details ...
John Deere 6830 Power
Engine (gross)145 hp
108.1 kW
Engine (net)140 hp
104.4 kW
Engine (max)152 hp
113.3 kW
Mechanical
Four-wheel drive
Differential lockrear electro-hydraulic wet disc
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
John Deere 6830
John Deere 6830 photos...
Capacity
Fuel66 gal
249.8 L
Optional Fuel85.9 gal
325.1 L
Hydraulic system13.2 gal
50.0 L
Hydraulics
Typeconstant flow
 pressure and flow compensated optional (PFC)
Capacity13.2 gal
50.0 L
Pressure2,901 psi
200.0 bar
Pump flow21.4 gpm
81.0 lpm
PFC Pump flow29.1 gpm
110.1 lpm
Tractor hitch
Rear TypeII/IIIN
Controlload and depth control with electronic lower-link sensing
Rear lift14,970 lbs
6790 kg
 16,910 lbs (optional)
7670 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/540E/1000
Engine RPM540@1995
 540E@1743
 1000@1995
Front PTO Type1000
Dimensions & Tires
Wheelbase104.3 inches
264 cm
Weight12,420 lbs
5633 kg
Front tire16.9R28
Rear tire20.8R38
Full dimensions and tires ...
6830 Serial Numbers
Location:Front-right side of main tractor frame, above front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Optional Charging amps154
Battery volts12
