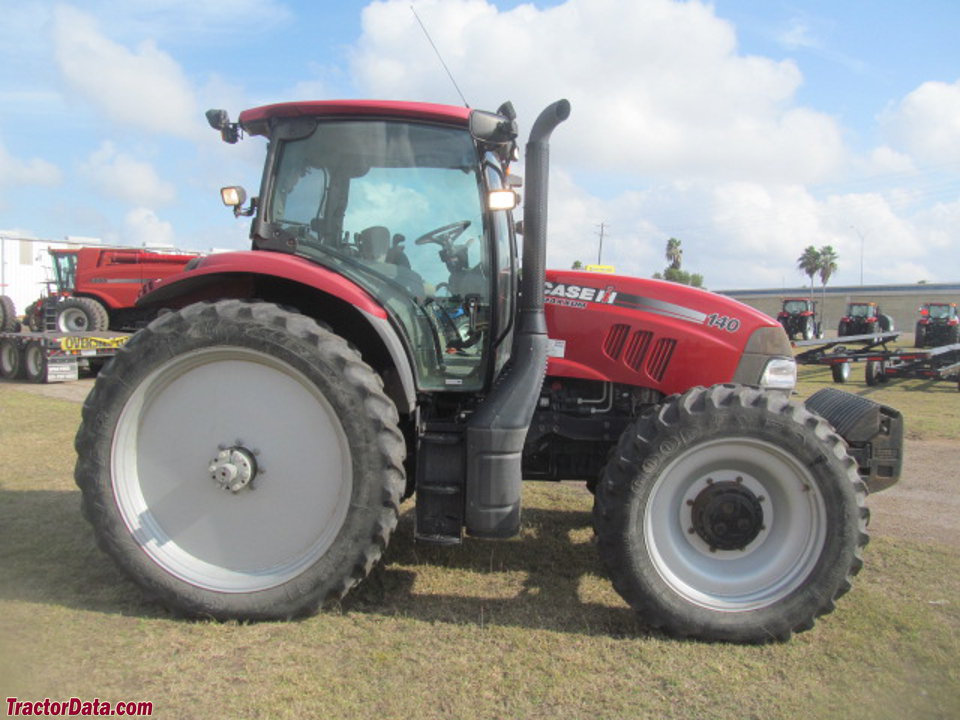

CaseIH Maxxum 140
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Original price was $103,969 in 2013 | |
| CaseIH Maxxum 140 Engine | |
| FPT 4.5L 4-cyl diesel | |
 Engine details ... |
| CaseIH Maxxum 140 Transmissions | |
| 24-speed two-speed power shift | |
| 17-speed partial power shift | |
 Transmission details ... |
| CaseIH Maxxum 140 Power | |
| Engine (gross) | 140 hp 104.4 kW |
| Engine (max) | 153 hp 114.1 kW |
| PTO (claimed) | 120 hp 89.5 kW |
| PTO (tested) | 139.2 hp 103.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | standard, optional wet plate lock |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Cab standard. Optional suspended cab. | |
| Photos | |
 | |
 CaseIH Maxxum 140 photos... | |
| Capacity | |
| Fuel | 60 gal 227.1 L |
| Exhaust fluid (DEF) | 9.7 gal 36.7 L |
| Hydraulic system | 19.5 gal 73.8 L |
| Hydraulics | |
| Type | open center |
| pressure flow compensating (optional) | |
| Capacity | 19.5 gal 73.8 L |
| Rear valves | 2 to 4 (mechanical) |
| 3 or 4 (electrohydraulic) | |
| Mid valves | 0, 2 or 3 |
| Pump flow | 18 gpm 68.1 lpm |
| 26.5 gpm (PFC) 100.3 lpm | |
| Total flow | 29.2 gpm 110.5 lpm |
| 43.6 gpm (PFC) 165.0 lpm | |
| Steering flow | 10.5 gpm 39.7 lpm |
| 17.1 gpm (PFC) 64.7 lpm | |
| Tractor hitch | |
| Rear Type | II |
| IIIN/II (optional) | |
| Rear lift | 6200 lbs 2812 kg |
| 6900 lbs (optional) 3129 kg | |
| 7700 lbs (optional) 3492 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 103.4 inches 262 cm |
| 105.5 inches (suspended front axle) 267 cm | |
| Weight | 12800 lbs 5806 kg |
 Full dimensions and tires ... | |
| CaseIH Maxxum 140 attachments | |
| front-end loader | |
 Attachment details ... |
| Maxxum 140 Serial Number Location | |
 | |
| Serial number tag on the left side of the radiator support. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| 150 (optional) | |
| Batteries | 2 |
| Battery CCA | 800 |
| Battery volts | 12 |
| References | |
 | |
| Maxxum Tractor Specifications published in 2011, by CaseIH | |
| Maxxum Series Tractors published in 2012, by CaseIH |
