John Deere 60 Hi-Crop

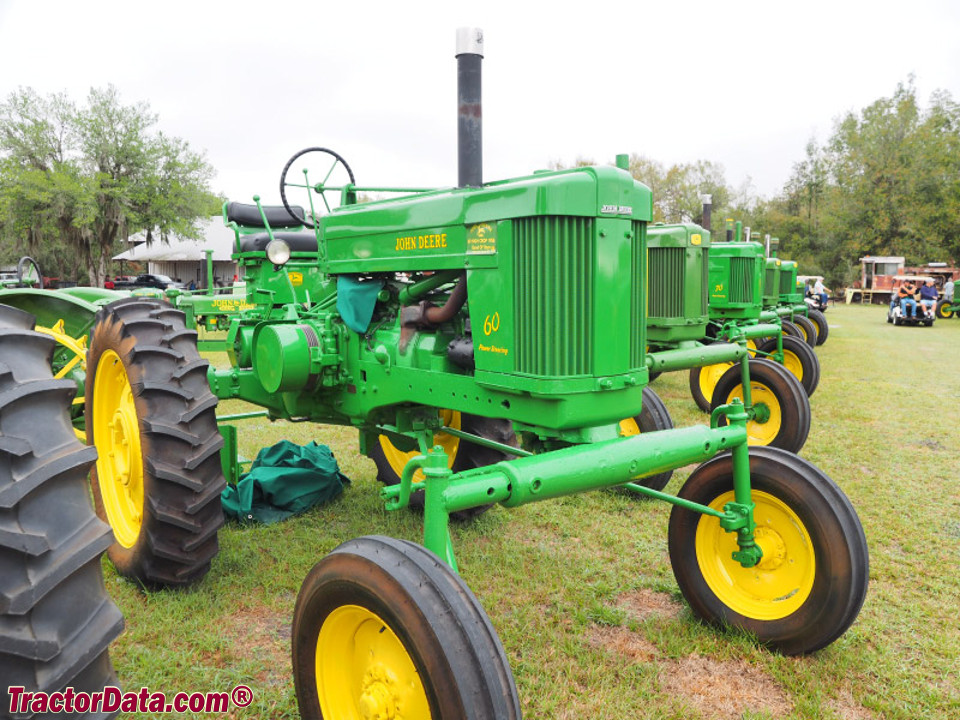

John Deere 60 Hi-Crop tractor photo
1952 - 1956
High-Clearance tractor
Series map:
60 Hi-Crop
70 Hi-Crop
46.2hp*
-1hp
Production
ManufacturerJohn Deere
High-Clearance tractor
Built in Waterloo, Iowa, USA
Total built212 (total)
 61 (gas)
 136 (all-fuel)
 15 (LP)
Variants
60row-crop
60Sstandard-tread
60 Hi-Crophigh-clearance
John Deere 60 Hi-Crop Engines
John Deere 5.3L 2-cyl gasoline
John Deere 5.3L 2-cyl all-fuel
John Deere 5.3L 2-cyl LP gas
Engine details ...
John Deere 60 Hi-Crop Transmission
6-speed unsynchronized gear
Transmission details ...
John Deere 60 Hi-Crop Power
Drawbar (claimed)36.94 hp
27.5 kW
Belt (claimed)41.57 hp
31.0 kW
Plows3 (14-inch)
Mechanical
Two-wheel drive
Steeringmanual
 power optional (1954 on)
Mechanical expanding shoe brakes
Open operator station.
Photos
John Deere 60 Hi-Crop
John Deere 60 Hi-Crop photos...
Capacity
Fuel20.5 gal
77.6 L
Hydraulic system1.5 gal
5.7 L
Hydraulics
TypePowr-Trol
Capacity1.5 gal
5.7 L
Pressure930 psi
64.1 bar
Valves1
Total flow8.9 gpm
33.7 lpm
Power Take-off (PTO)
Rear PTOtransmission
 independent OptOptional
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase98.2 inches
249 cm
Weight6,468 lbs
2933 kg
Front tire7.50x20
Rear tire11-38
Full dimensions and tires ...
Belt Pulley
Diameter12.8 inches
32 cm
Width7.4 inches
18 cm
RPM975
Speed3,270 ft/min
996.70 meters/min
Electrical
Groundpositive
Batteries2
Battery volts6
References
60 Hi-Crop references literature
The First Numbered Series of John Deere Tractors published in 2004, by Hain Publishing
50 & 60 General-Purpose Tractors published in 1952, by John Deere
General-Purpose Tractors published in 1953, by John Deere
