John Deere 60 Standard
1954 - 1956 Standard-tread tractor
Series map:
60 Standard
46.2hp*
*Estimated engine power for comparison only.
Production Manufacturer John Deere
Standard-tread tractor Built in Waterloo, Iowa, USA Total built 2,854
There were two basic verions of standard-tread model 60. The early "low seat" version was built until 1955. Starting at serial number 6043000 a new "high seat" chassis was used.
John Deere 60 Standard Power Drawbar (claimed) 36.94 hp27.5 kW
Belt (claimed) 41.57 hp31.0 kW
Plows 3 * 14-inch
Mechanical Two-wheel drive Steering manual
power optional (1954 on)
Mechanical expanding shoe brakes Open operator station.
Capacity Fuel 20.5 gal77.6 L
28 gal (LP gas)106.0 L
Aux. fuel 1 gal3.8 L
Hydraulic system 1.5 gal5.7 L
Hydraulics Type Powr-Trol
Capacity 1.5 gal5.7 L
Pressure 930 psi64.1 bar
Valves 1
Total flow 8.9 gpm33.7 lpm
Power Take-off (PTO) Rear PTO transmission
independent (optional)
Rear PTO Type 540 (1.375)

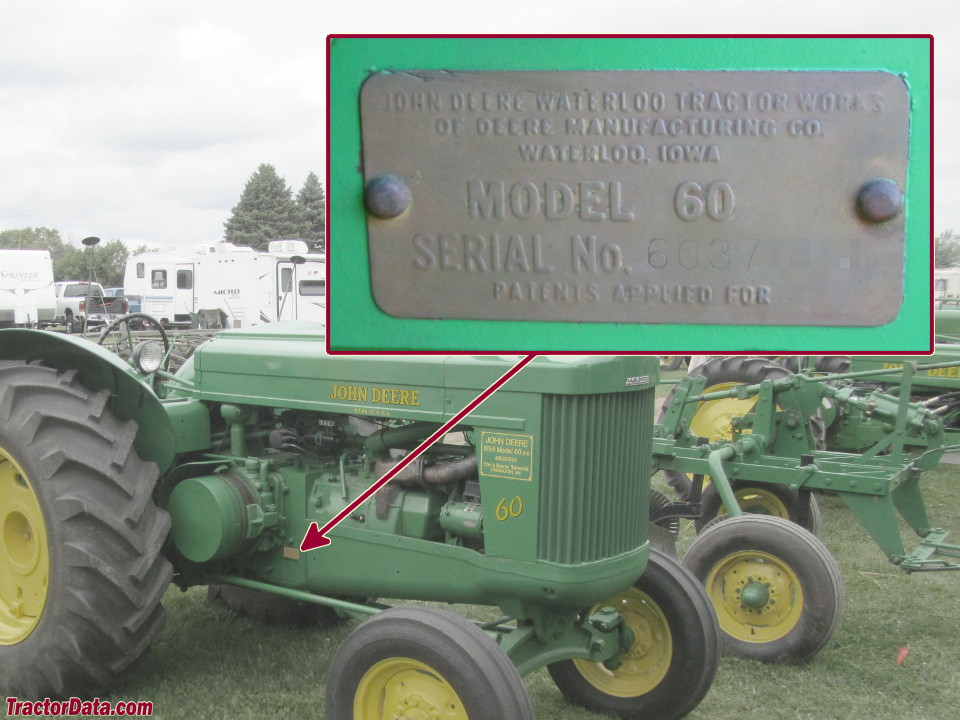

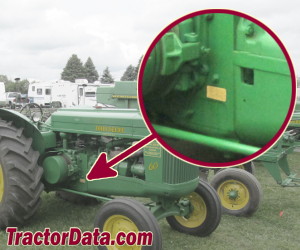

60 Standard Serial Number Location Right side of tractor.
Belt Pulley Diameter 12.8 inches32 cm
Width 7.4 inches18 cm
RPM 975
Speed 3,270 ft/min996.70 meters/min
Electrical Ground positive
Charging system generator
Batteries 2
Battery volts 6
References The First Numbered Series of John Deere Tractors published in 2004, by Hain Publishing
Page information Copyright 2024 TractorData.com® TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. Peter Easterlund - owner/authorEmail: Peter@TractorData.com Updated on August 4, 2015
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
