Bolens G152 Transmission


Bolens G152 tractor photo
1978 - 1991
Model year
Sub-Compact Utility tractor
Iseki built
Series map:
G152
G154
15.0hp
15.0hp
Transmission
Typeunsynchronized gear
Gears6 forward and 2 reverse
Clutchdry disc
Oil capacity13.7 qts
13.0 L
Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range.

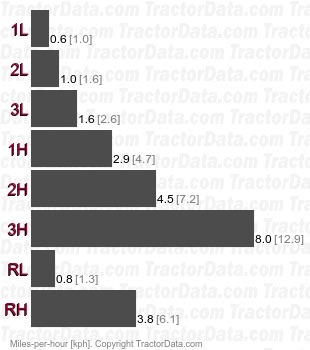

Speeds
G152  unsynchronized gear speeds
