| | 1978 - 1991 |
|
| Sub-Compact Utility tractor | | Iseki built |
|
Series map:
G152
G154
G172
15.0hp
15.0hp
17.0hp
| Transmission |
| Type | unsynchronized gear
|
| Gears | 6 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 13 qts
12.3 L
|
| Three gears (1-3) plus reverse (R) with additional high-low range shift. Tractor must be stopped, and clutch used, to shift gears and range. |

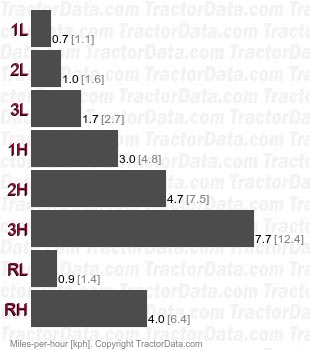

| Speeds |
|
| Shift Pattern |
 |
