Farmall Super MV
| | 1952 - 1954 |
| High-Clearance tractor |
|
Series map:
Super MV
52.8hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| High-Clearance tractor |
| Factories | Rock Island, Illinois, USA
|
| | Louisville, Kentucky, USA
|
| Total built | 245
|
| Variants |
| Super M | row-crop
|
| Super MV-TA | Torque Amplifier
|
| Farmall Super MV Power |
| Drawbar (claimed) | 41 hp
30.6 kW
|
| PTO (claimed) | 47.5 hp
35.4 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| Differential mechanical dry disc brakes |
| Open operator station. |
| Hydraulics |
| Type | IH Lift-All
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540
|
| Super MV Serial Number Location |
 |

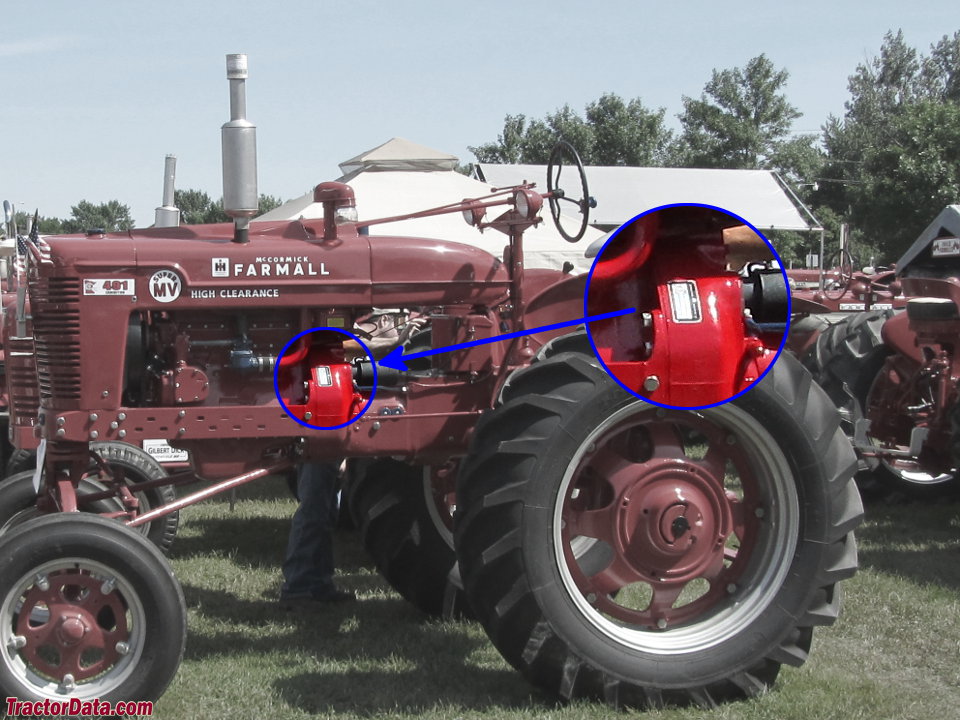

| Serial number plate on the left side of the Farmall Super MV, on the clutch housing. |
| Super MV Serial Numbers |
| 1952 | 501 (Farmall Rock Island plant)
|
| 1953 | 12516 (Farmall Rock Island plant)
|
| 1954 | 51977
|
| Final | 52627 (Farmall Rock Island plant)
|
| 1952 | 500001 (Louisville plant)
|
| 1953 | 501906 (Louisville plant)
|
| 1954 | 512541 (Louisville plant)
|
FAQ: How to read a serial number table.
|
| Belt Pulley |
| Diameter | 11 inches
27 cm
|
| Width | 7.5 inches
19 cm
|
| RPM | 899
|
| Speed | 2588 ft/min
788.82 meters/min
|
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Battery volts | 6
|
| References |
 |
| Operator's Manual Farmall Super M and Super MV (1004245R1) published in 1952 |
