| | 1981 - 1983 |
| 9500 Series | | Sub-Compact Utility tractor | | Hinomoto built |
|
Series map:
9518
9523
18.0hp
23.0hp
| Transmission |
| Type | partially synchronized
|
| Gears | 9 forward and 3 reverse
|
| Oil capacity | 18 qts
17.0 L
|
| Three speeds (1-3) in three ranges (Creeper, Low, High). Gears are synchronized using the foot clutch. Tractor must be stopped, and clutch used, to shift ranges. |

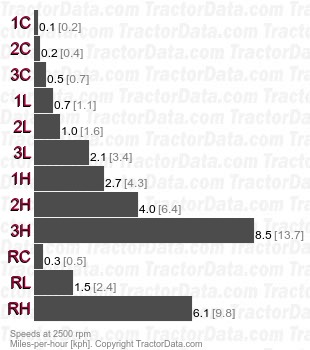

| Speeds |
| With 8-18 R1 rear tires. |
|
| Shift Pattern |
 |
