| | 1981 - 1983 |
| 9500 Series | | Sub-Compact Utility tractor | | Hinomoto built |
|
Series map:
9518
9523
18.0hp
23.0hp
| Engine Detail |
| Toyosha |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 61.27 ci
1.0 L
|
| Bore/Stroke | 2.87x3.15 inches
73 x 80 mm
|
| Power | 18 hp
13.4 kW
|
| Compression | 22.5:1
|
| Rated RPM | 2500
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 3.2 qts
3.0 L
|

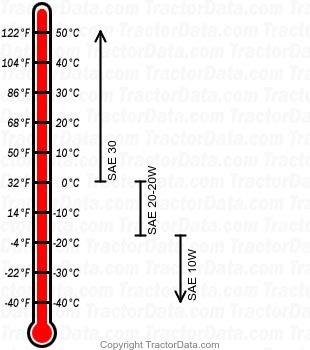

| Engine Oil |
|
| Oil capacity | 2.3 qts
2.2 L
|
| Oil change | 50 h
|

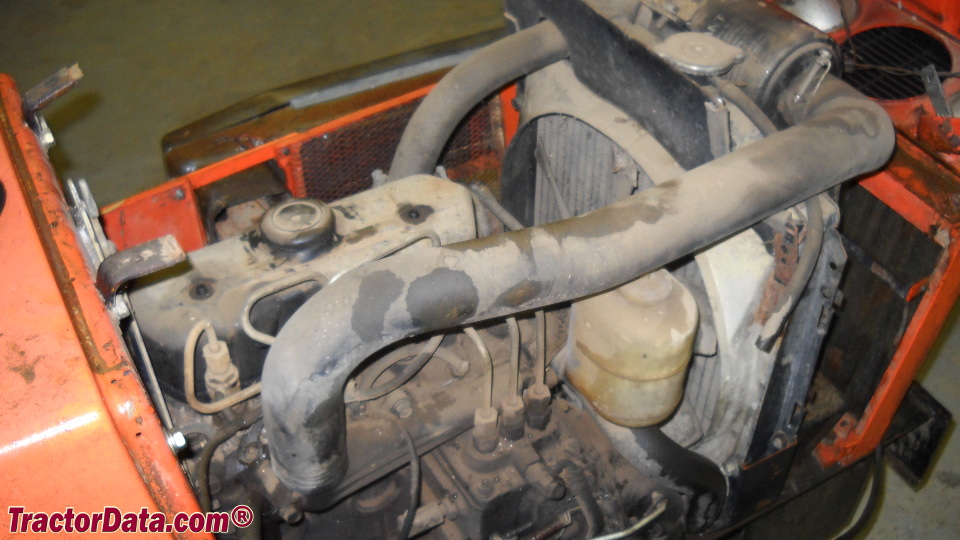

| Simplicity 9518 Engine |
 |
| Image courtesy of Jacob Lorenz |
