John Deere 6110D Transmission


John Deere 6110D tractor photo
2008 - ????
6D Series
Utility tractor
Series map:
6110D
6125D
79.0kw
91.7kw
Transmission options
9-speed unsynchronized gear
9-speed partially synchronzied
Transmission
TransmissionJohn Deere Collar Shift
Typeunsynchronized gear
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity61.2 qts
57.9 L
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.
Speeds
With 18.4-34 rear tires.

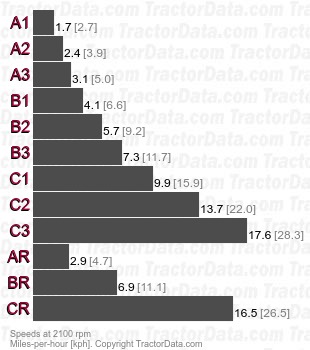

6110D Collar Shift unsynchronized gear speeds
Transmission
TransmissionJohn Deere Top Shaft Syncronized (TSS)
Typepartially synchronzied
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity61.2 qts
57.9 L
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.
Speeds
With 18.4-34 rear tires.
6110D Top Shaft Syncronized (TSS) partially synchronzied speeds
