Tractors > John Deere > 6110D

John Deere 6110D Engine



John Deere 6110D tractor photo
2008 - ????
6D Series
Utility tractor
Series map:
6110D
6125D
79.0kw
91.7kw
Engine Detail
John Deere 4045T PowerTech
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Rated Power (gross)106 hp
79.0 kW
Air cleanerdry element with pre-cleaner
Compression17:1
Rated RPM2100
Idle RPM950-2275
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity17.4 qts
16.5 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

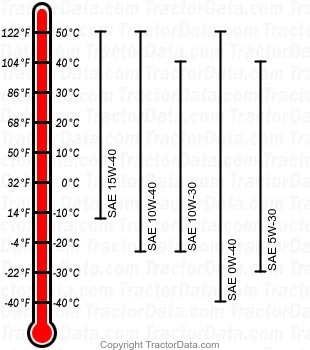

6110D diesel engine oil chart
Oil capacity13 qts
12.3 L
Oil change250 h
 500 h (JD TorqGARD oil)
