| | 1963 - 1967 |
| High-Clearance tractor |
|
| Transmission options |
| 8-speed |
| 16-speed |
| Transmission |
| Transmission | sliding gear
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 12-inch dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Oil type |
|
| The 706 transmission is controlled by means of two levers. A range lever selects high, low, reverse range, or neutral. A separate speed lever selects one of four speeds. The tractor must be stopped, and the clutch used, to change range or speed gears. |

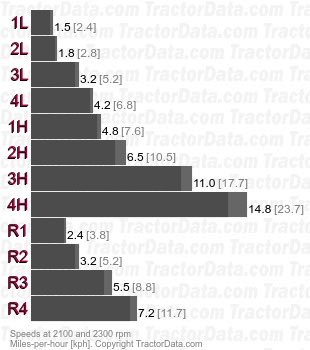

| Speeds |
| With 15.5-38 R2 rear tires. |
|
| Transmission |
| Transmission | Torque Amplifier
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 12-inch dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Oil type |
|
| The Torque Amplifier (TA) provides a hydraulically-actuted under-drive that may be shifted, on the move, with any range and speed selection in the main transmission. Using the TA does not require the clutch or stopping the tractor. With the lever in the forward position, the TA is disengaged and the transmission is in direct drive. To slow the tractor (increasing pulling power) the TA lever should be pulled smoothly and quickly to the rear, engaging the TA. To disengage the TA and return to direct-drive, the TA should be moved forward, with a slight pause at the center position of the lever. |

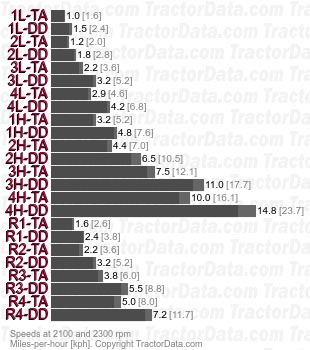

| Speeds |
| With 15.5-38 R2 rear tires. |
|
