CBT 8240 Engine


CBT 8240 tractor photo
1984 - 1988
Engine options
Perkins diesel
Perkins 3.8L 4-cyl ethanol
Engine Detail
Perkins
diesel
CBT 8240 Engine

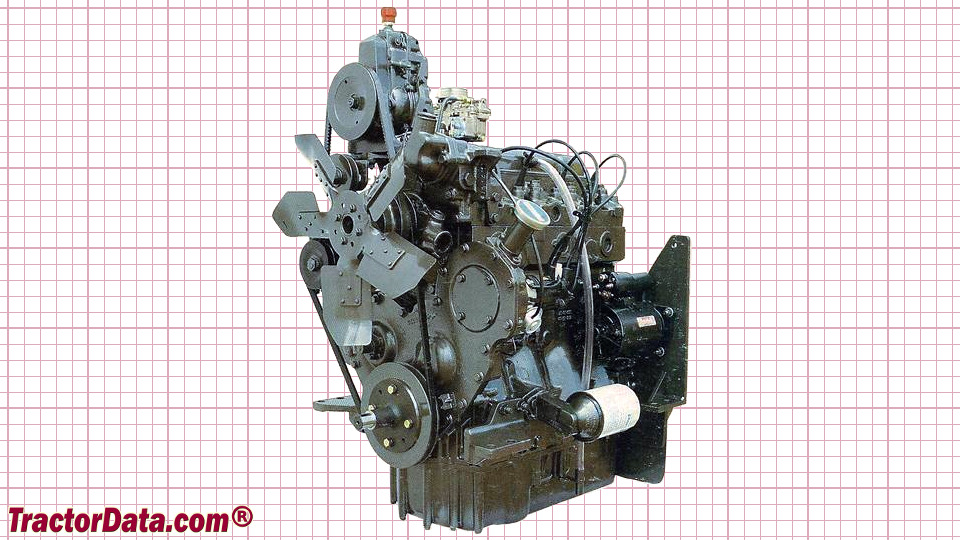

CBT 8240 engine image
Engine Detail
Perkins E-4.236
ethanol
4-cylinder
liquid-cooled
Displacement230.7 ci
3.8 L
Bore/Stroke3.875x5.00 inches
98 x 127 mm
Power80 hp
59.7 kW
Air cleanerdual dry
Rated RPM2200
Torque211.2 lb-ft
286.4 Nm
Torque RPM1400
Starter volts12
Starter power4 hp
3.0 kW
Oil capacity7.5 qts
7.1 L
Coolant capacity15.22 qts
14.4 L
