SAME Tiger 75 Transmission


SAME Tiger 75 tractor photo
2008 - ????
Utility tractor
Series map:
Tiger 65
Tiger 75
46.2kw
53.7kw

Note: the SAME model Tiger 75 is the same as the Lamborghini Rekord 75. The following data is from the Rekord 75 listing.
Transmission
Typepartially synchronized
Gears12 forward and 3 reverse
Clutchsingle dry disc
Four gears (1-4) plus reverse (R) in three ranges (L/M/V). Gear shifts in range are synchronized.

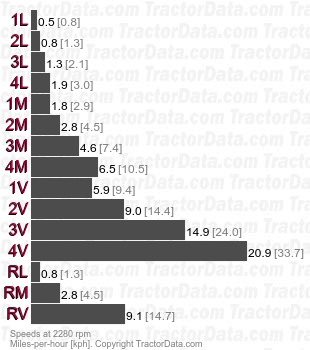

Speeds
With 16.9R30 rear tires.
Tiger 75  partially synchronized speeds
